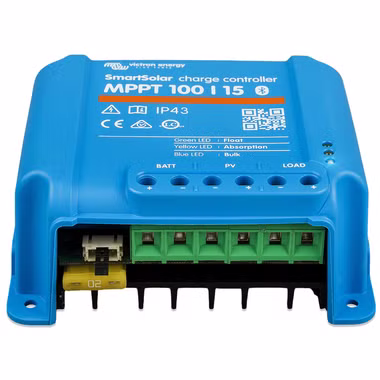

Victron Energie MPPT Smart Solar charge controller - MPPT SmartSolar 100/15 including Bluetooth and smartphone app
Fits perfectly under the passenger seat of the Mercedes-Benz Marco Polo / Horizon / Activity.
Item no. 36114
MPP solar charge controller MPPT SmartSolar 100/15 from Victron
- Bluetooth Smart integrated: enables monitoring with a smartphone or other Bluetooth-enabled device
- Max. open circuit voltage of the solar modules: 100 V
- Nominal charging current 15 A
- Automatic voltage detection: suitable for 12 V and 24 V systems
- Ultra-fast maximum power point tracking (MPPT)
- Max. PV power: 220W at 12V or 440W at 24V
Ultra-fast MPPT tracking
Especially in cloudy conditions, when the light intensity is constantly changing, the super-fast MPPT algorithm improves the energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced maximum power point detection for partial shading. In the event of partial shading, there may be two or more maximum power points (MPP) on the current-voltage curve. Conventional MPPTs tend to adjust to a local MPP. However, this may not be the optimum MPP. The innovative algorithm of the SmartSolar device will always maximise the energy yield by adjusting to the optimum MPP.

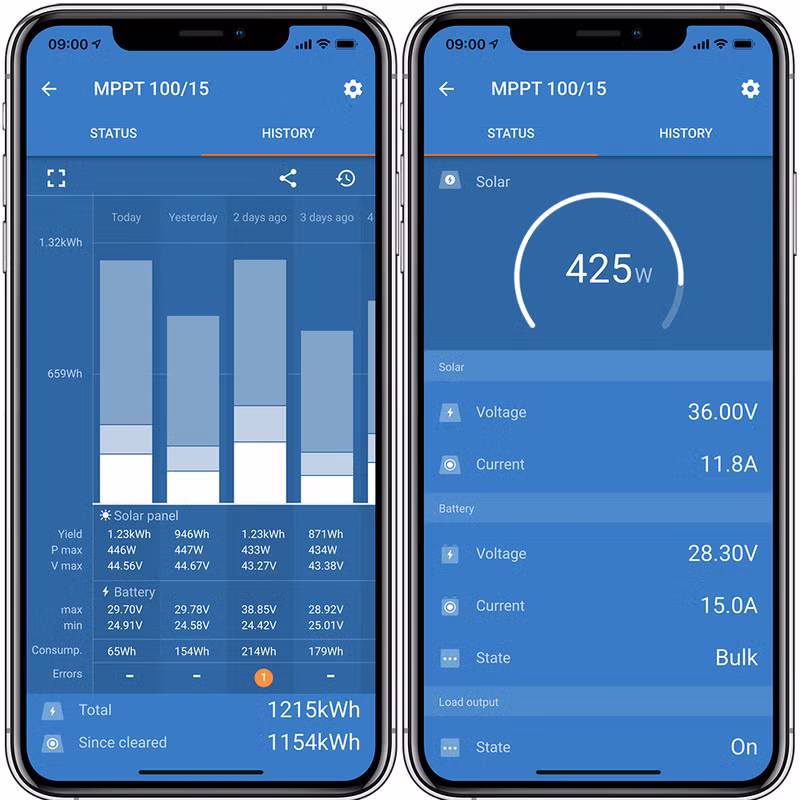

Highlight: Display data in real time on your smartphone! Built-in Bluetooth Smart: no dongle required
A Bluetooth-enabled smartphone can display a wide range of data live. The wireless solution for setting up, monitoring and updating the controller using Apple and Android smartphones, tablets or other devices.
Unlike the BlueSolar controllers, the Bluetooth interface is already built in, so no additional accessories need to be purchased.
Intelligent battery management with the BatteryLife algorithm
The BatteryLife algorithm monitors the state of charge of the battery and slightly increases the threshold value for switching off the load every day until the constant voltage is reached. From this point, the threshold value for switching off the load is modulated so that the constant voltage is reached approximately once a week.
The BatteryLife algorithm will increase the operating life of the battery compared to conventional battery algorithms, which always alternate between "partially charged" and "fully charged" (due to low self-discharge)
Load output
Overcharging of the battery can be prevented by connecting all loads to the load output.
The load output disconnects the loads when the battery has been discharged to a specified voltage value. Alternatively, an algorithm for intelligent battery management can be selected. The load output is short-circuit proof.
Technical data
Bluetooth Smart integrated: enables monitoring with a smartphone or other Bluetooth-enabled device
Max. open-circuit voltage of the solar modules: 100 V
Nominal charging current 15 A
Automatic voltage detection: suitable for 12 V and 24 V systems
Ultra-fast maximum power point tracking (MPPT)
Max. PV power: 220W at 12V or 440W at 24V
Technical characteristic | Value |
---|---|
Manufacturer | Victron Energy |
Model | MB-MP-MPPT 100/15 |
Content | 1 piece |
Condition | New |
Weight | 500 g |
