100W SolarBuddy solar bag directly with USB connection for Mercedes-Benz Marco Polo / Horizon / Activity
- Charge directly: Two USB ports need no battery or charge controller.
- Park in the shade: A five-metre cable lets the panel catch sunlight.
- Follow the sun: Fold-out legs help angle the 100-watt panel.
- Easy to carry: The foldable SolarBuddy weighs 3.9 kg.
Item no. 36126
The WATTSTUNDE® SolarBuddy WS100SB lets you generate solar power on your travels without permanently mounting a panel on your Mercedes-Benz Marco Polo, Horizon or Activity. This folding 100-watt solar panel with a hardcover design can be positioned independently of your vehicle and charges suitable USB devices directly.
Keep your vehicle in the shade and your panel in the sun

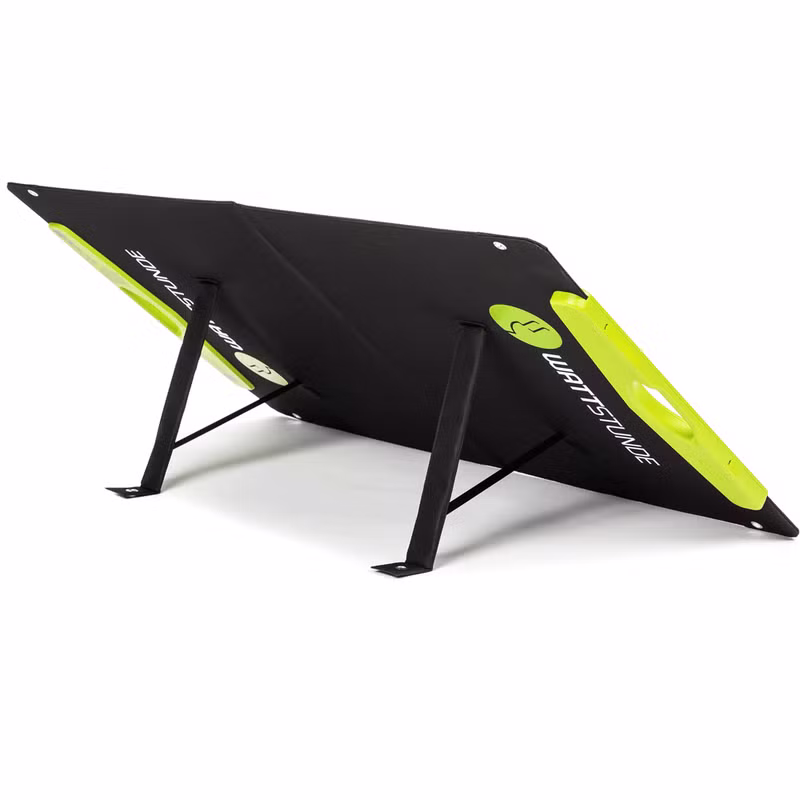

Fold-out legs make the panel easy to set up and angle towards the sun. You can reposition it as the sun moves throughout the day. Within the reach of the 5 m connection cable, your vehicle can remain in the shade while the SolarBuddy stands in sunlight. It can also be placed behind the windscreen when the vehicle is parked.
Charge USB devices without an additional charge controller

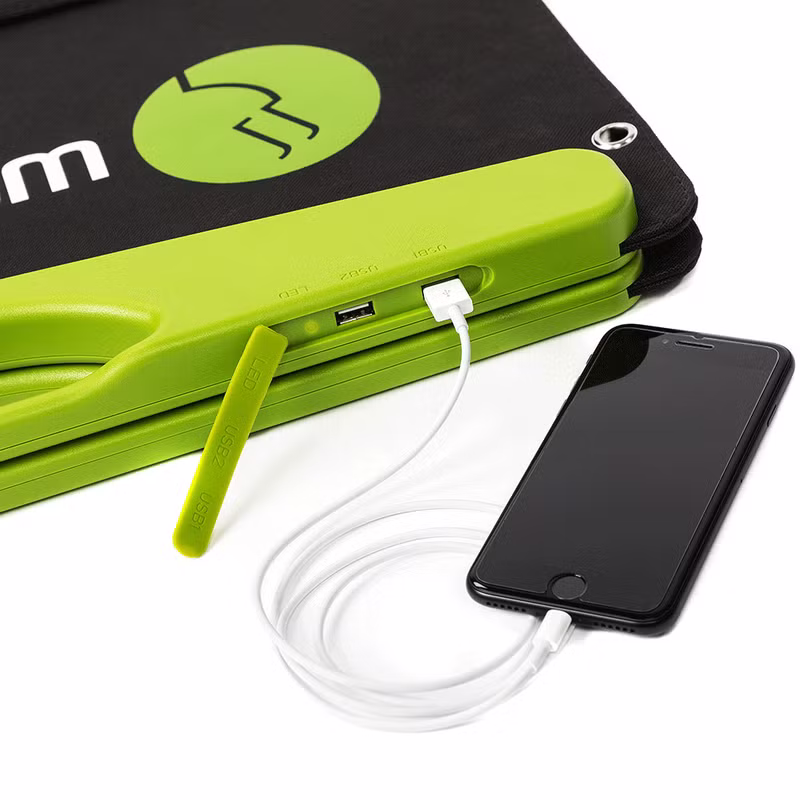

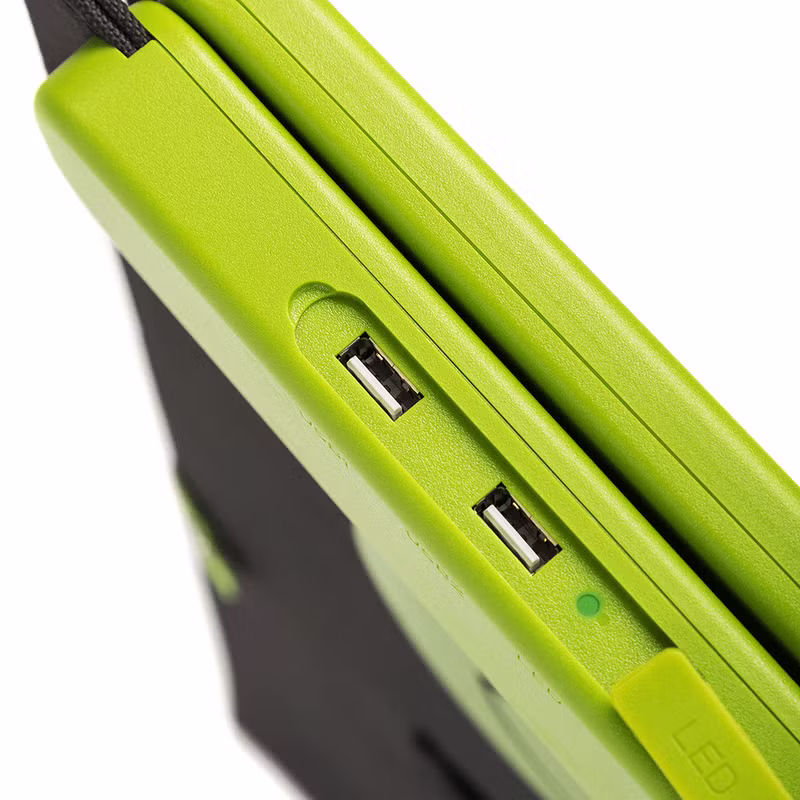

The handle houses two USB ports rated at 5 V/2 A. With sufficient sunlight, they let you charge suitable USB devices directly, without an external battery or an additional solar charge controller. The 100 Wp rating refers to the solar panel, not the charging output of the USB ports.
Robust construction in a compact folding format

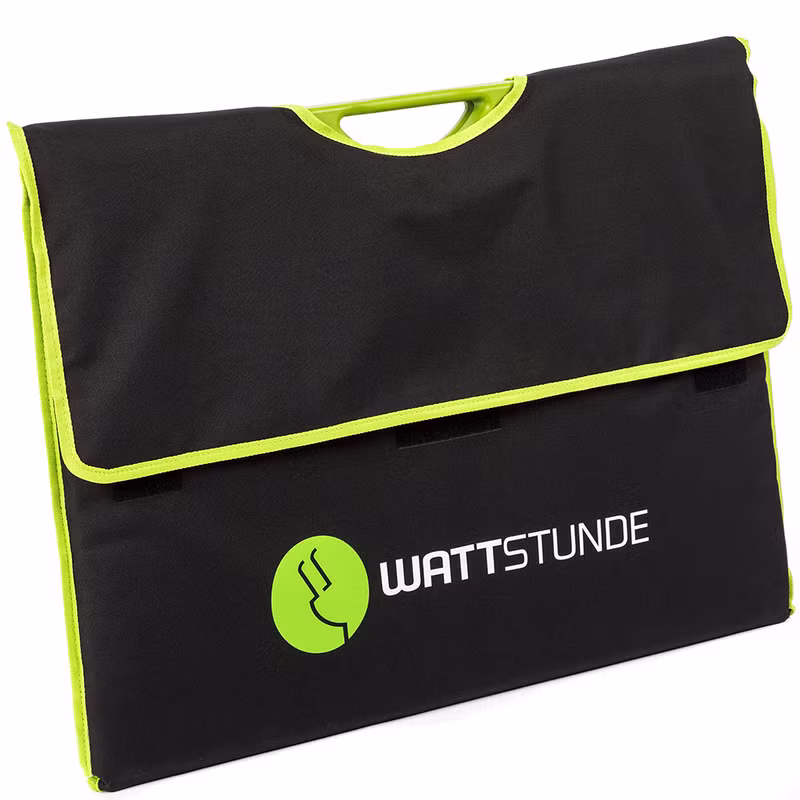

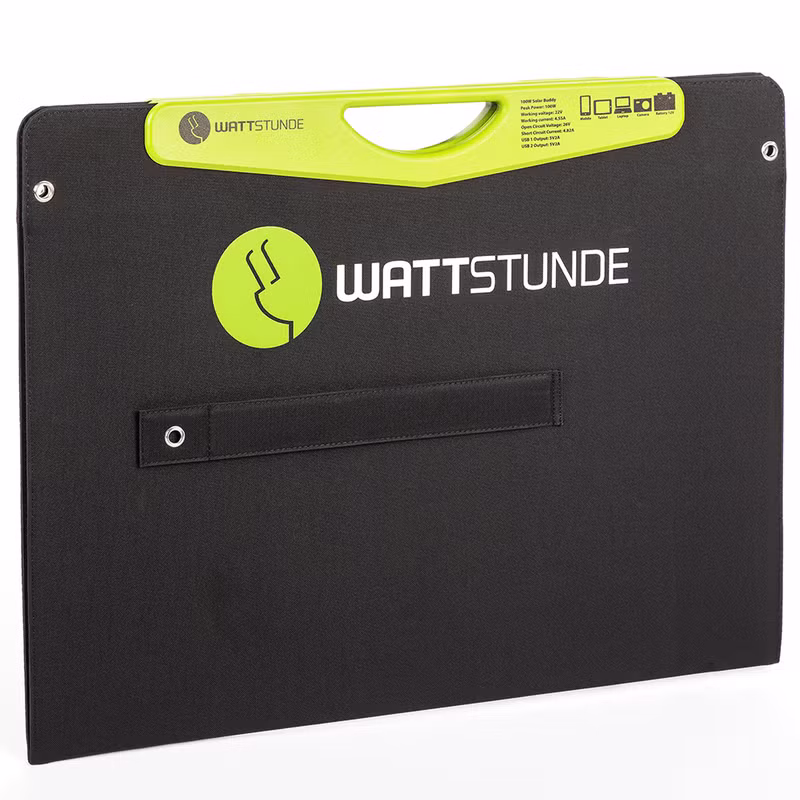

The hardcover construction combines the robustness of a solar suitcase with the portability of a folding solar panel. Its polyamide fabric is durable and water-repellent. With a weight of 3.9 kg and folded dimensions of 520 x 685 x 45 mm, the SolarBuddy can be carried to your chosen spot and folded away after use. A carry bag is included.
Plan your solar yield around the conditions
The monocrystalline solar cells have a cell efficiency of 18%. The stated average summer yield of 600 Wh per day is a reference figure, not a fixed daily output. The energy actually available depends on factors including sunlight, panel orientation and shading.
Water-repellent fabric still needs dry conditions
Despite its water-repellent fabric, the SolarBuddy must be protected from rain, dew and moisture. Keep water away from sensitive areas, particularly the USB ports and the space beneath their cover. Do not leave the panel outdoors overnight.
What is included for your mobile setup
- SolarBuddy WS100SB with fold-out legs and two USB ports

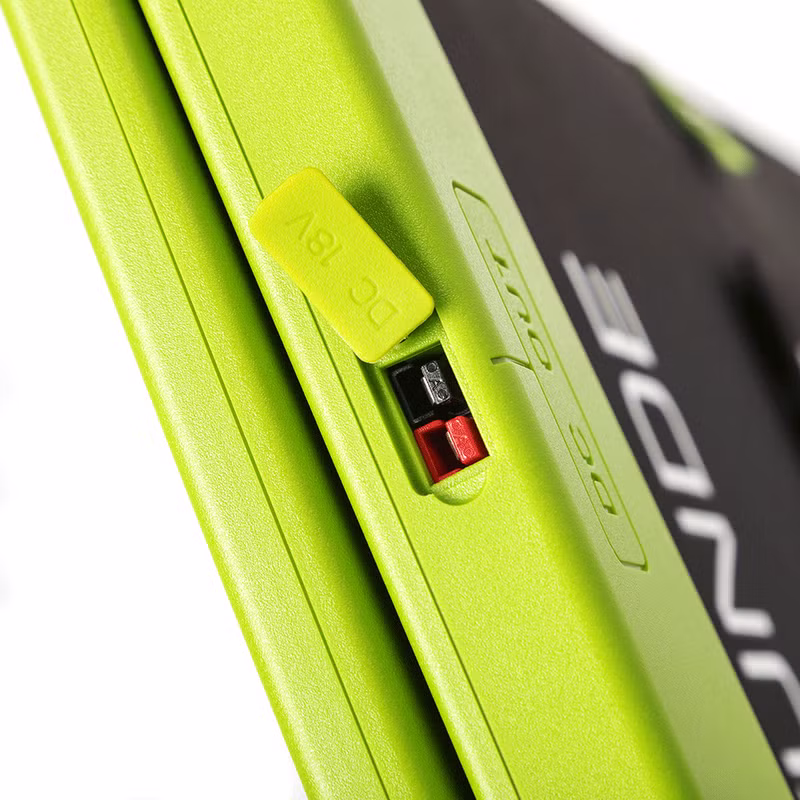

- 5 m connection cable with Anderson Powerpole connector
- 1.5 m battery connection cable with a 10 A fuse
- Carry bag
Prepare battery charging to suit your electrical setup
A solar charge controller is not included. To charge a battery and store the energy generated, you need a suitable solar charge controller and battery. Before connecting the panel, check that the controller, battery type and existing connections are compatible. The Anderson Powerpole connector alone does not establish direct compatibility with your vehicle's electrical system.
Technical specifications
| Module type | 12 V module |
| Rated power (Pmpp) | 100 Wp |
| Average daily yield (summer) | 600 Wh/d |
| Short-circuit current (Isc) | 4.82 A |
| Open-circuit voltage (Uoc) | 26.0 V |
| Voltage (Umpp) | 22.0 V |
| Current (Impp) | 4.55 A |
| Cell efficiency | 18% |
| Dimensions (folded) | 520 x 685 x 45 mm |
| Dimensions (unfolded) | 1040 x 685 x 28 mm |
| Connection cable | 5 metres |
| Weight | 3.9 kg |
What is the SolarBuddy and which vehicles is it intended for?
The WATTSTUNDE® SolarBuddy WS100SB is a folding 100-watt solar panel with a hardcover design for portable power generation, for example when travelling in a Mercedes-Benz Marco Polo, Horizon or Activity. No permanent mounting on the vehicle is required.
How can you charge USB devices directly?
The handle contains two USB ports rated at 5 V/2 A. With sufficient sunlight, you can connect suitable USB devices without an external battery or an additional solar charge controller. The panel's 100 Wp rating is not the USB charging output.
What do you need to charge a battery?
You need a solar charge controller compatible with both the panel and your battery, together with suitable connections. A controller is not included. When selecting one, consider the 26.0 V open-circuit voltage and 4.82 A short-circuit current, among other requirements. The Anderson Powerpole connector alone does not establish direct compatibility with the vehicle's electrical system.
Which cables and accessories are included?
The SolarBuddy comes with a 5 m connection cable with Anderson Powerpole connector, a 1.5 m battery connection cable with a 10 A fuse and a carry bag. The panel also has fold-out legs and two USB ports.
What are the panel's dimensions and weight?
The SolarBuddy measures 520 x 685 x 45 mm when folded and 1040 x 685 x 28 mm when unfolded. It weighs 3.9 kg.
Where and how should you position the SolarBuddy?
In dry conditions, use the fold-out legs to angle the panel towards the sun. Within the reach of the 5 m connection cable, your vehicle can remain in the shade. The panel can also be placed behind the windscreen when the vehicle is parked.
How much energy does the SolarBuddy generate?
Its rated power is 100 Wp, and the monocrystalline cells have a cell efficiency of 18%. The stated average summer yield is 600 Wh per day. Actual yield depends on sunlight, orientation and shading, so it will vary from day to day.
What precautions are needed in rain, dew and overnight?
Although the polyamide fabric is water-repellent, the SolarBuddy must be protected from rain, dew and moisture. In particular, keep water away from the USB ports and the space beneath their cover. Do not leave the unit outdoors overnight.
The order creation for optional installation service is done manually, in this case please do not order online.
| Brand | Wattstunde |
| Item No. | 36126 |
| Content | 1 each |
| Condition | New |
| Weight | 3900 g |
| Customs tariff number | 85414300 |
| Manufacturer | WATTSTUNDE GmbH Bessemerstraße 3 21339 Lüneburg Germany vertrieb@wattstunde.de |
