The Starline Can-Bus alarm system with immobiliser, two TAGs, 4G modem, GPS including installation in the Mercedes-Benz Marco Polo
- Keys alone cannot start your van: The immobiliser requires additional authorisation.
- Alerts straight to your smartphone: Calls and push notifications keep you informed.
- Your Marco Polo at a glance: GPS shows location and journey history.
- Protection while parked: Sensors detect impacts, movement and tilting.
Item no. 35898
The Starline CAN bus alarm system combines vehicle monitoring with 4G, GPS/GLONASS tracking and a digital immobiliser for your Mercedes-Benz Marco Polo. It lets you receive alarm notifications, check the vehicle's location and make engine starting subject to additional authorisation.
Detect alarm events and review what happened
The system monitors door contacts and battery voltage, as well as movement, tilt and impacts. Its two-stage shock sensor provides pre-alarm and full alarm levels. A waterproof 126 dB single-tone siren provides the audible warning.
If an alarm is triggered, the system can notify you by phone call and push notification. An event log records sensor events and data read from the vehicle's CAN bus, allowing you to review what the system detected afterwards.
Require additional authorisation before the engine starts
The iCAN digital CAN bus immobiliser makes engine starting subject to valid authorisation. This can be provided by a Bluetooth tag, a suitably configured smartphone or a PIN entered using the vehicle's buttons. Possession of the vehicle key alone does not replace this additional authorisation.
The package includes two waterproof STAR-TAG-1 Bluetooth tags. Bluetooth Smart authorisation, keyless entry protection and a hands-free mode are also supported. This allows the additional authorisation to fit into everyday use without relying solely on manual code entry.
Keep track of locations, journeys and defined areas
GPS and GLONASS tracking let you check the vehicle's location through the Android app, iPhone app or web portal in a browser on a tablet, laptop or desktop computer. You can also review past journeys with location, time and speed data. Individual journeys can be exported as PDFs containing these details, while driving style analysis provides an additional way to review vehicle use.
Geofences let you define locations with an individually adjustable radius. Push or email notifications can inform you when the vehicle approaches or moves away from one of these areas, so you do not have to keep checking its location manually.

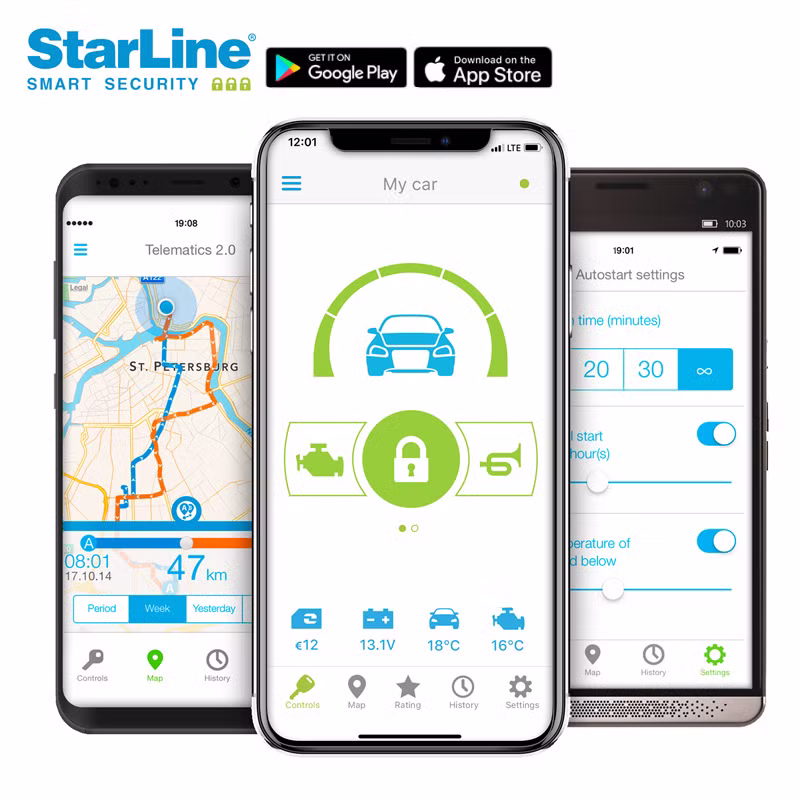

Control the alarm and supported functions from the app
You can arm the alarm using the vehicle's remote key and arm or disarm it from your smartphone. The app displays whether the system is armed or disarmed. Control and configuration are available through the apps and browser interface. The Apple iOS and Android smartphone app is specified as being in German.
Further options include voice commands, Siri support on iPhone and iPhone widget integration. Assignable buttons and individual colour settings let you adapt the interface. A single alarm tone can also be triggered to help you locate the parked vehicle.
Use existing vehicle data where supported
The CAN bus connection can integrate the original alarm system and existing sensors. Displays for the vehicle battery, cabin temperature, fuel level and odometer reading are also provided for. These functions are vehicle-dependent and may not all be available.
The same limitation applies to central locking control, boot or tailgate opening and the available vehicle data. Examples of configurable central locking actions include locking when the ignition is switched on and unlocking when the handbrake is applied. OBD2/CAN diagnostics allow vehicle fault messages to be read and displayed.
External equipment can also be switched on and off through the app and browser when appropriately integrated. This includes control functions for Webasto and Eberspächer parking heaters.
Plan for workshop installation and mobile connectivity
This system is offered only with installation in our workshop in your Mercedes-Benz Marco Polo. Supply of the alarm system without installation is not part of this offer.
A 4FF-format nano-SIM card is required for operation and is listed as an optional accessory. Remote access and transmission of notifications require a mobile network connection. Allow for the SIM card when planning the workshop installation.

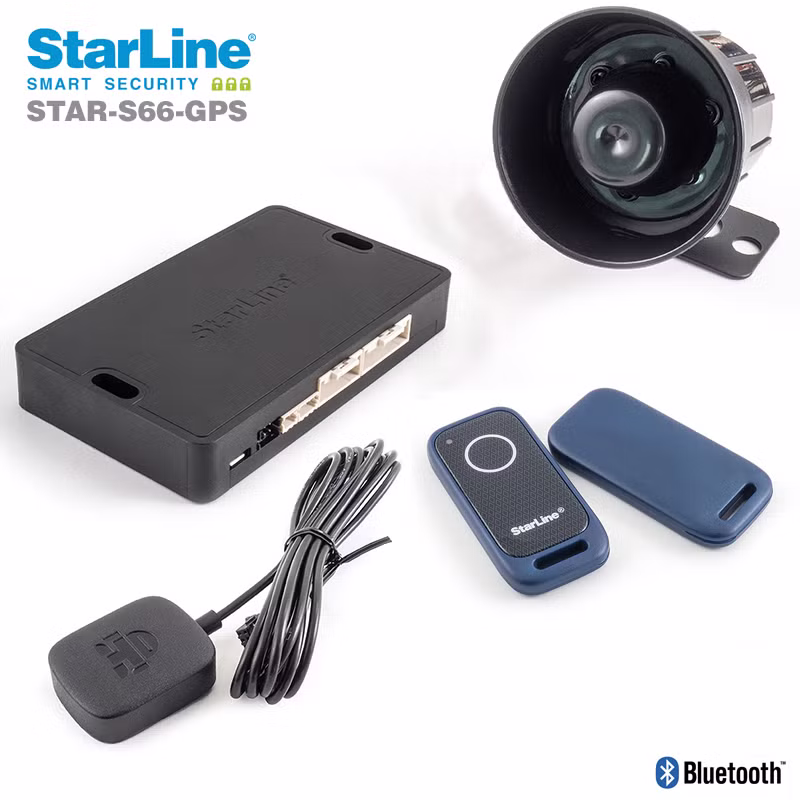

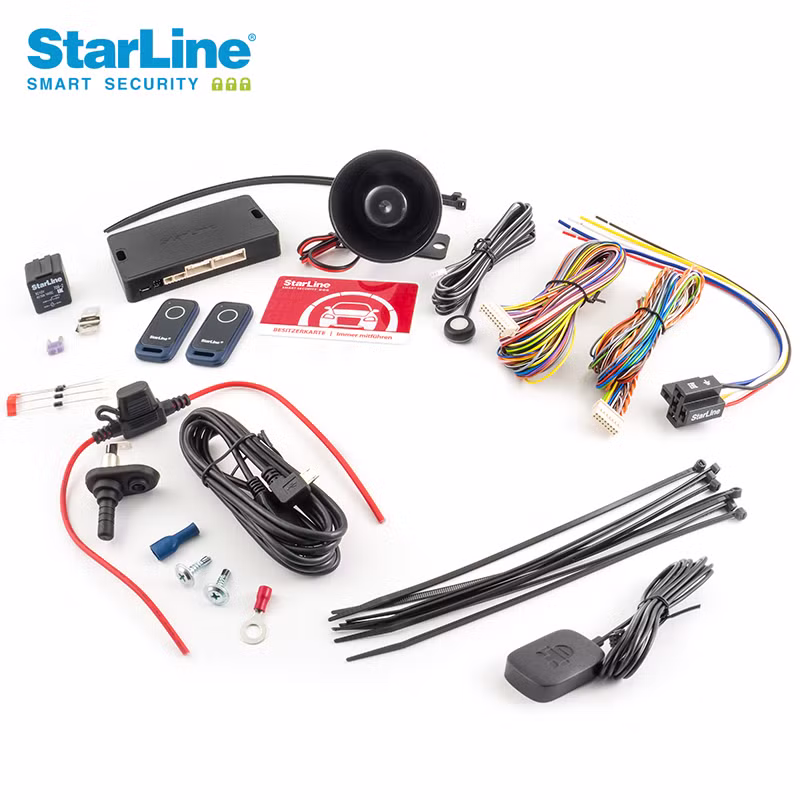

Product details
- CAN bus alarm system, armed using the vehicle's remote key
- 4G modem with nano-SIM card reader

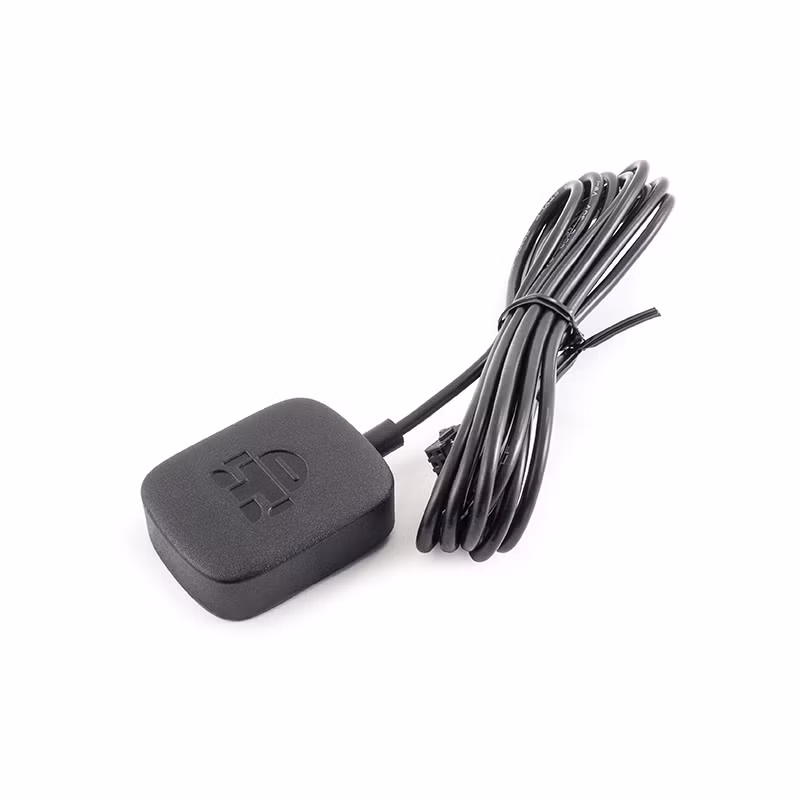

- GPS & GLONASS tracking system
- CAN bus immobiliser (iCAN), digital engine blocking
- 2x STAR-TAG-1 Bluetooth tags, waterproof
- Bluetooth Smart authorisation via smartphone
- PIN code authorisation using the vehicle's buttons
- Integrated 3D shock, tilt and motion sensor
- Integrated 2CAN +2 LIN data bus interface
- Keyless entry protection
- Bluetooth receiver for wireless connection of tags, relays, programming interface and smartphones.
- Super Slave mode
- Central locking control via CAN bus
- Hands-free mode (keyless entry)
- Web portal for GPS tracking
- OBD2 diagnostics
- Integrated temperature sensor
- Webasto & Eberspächer control

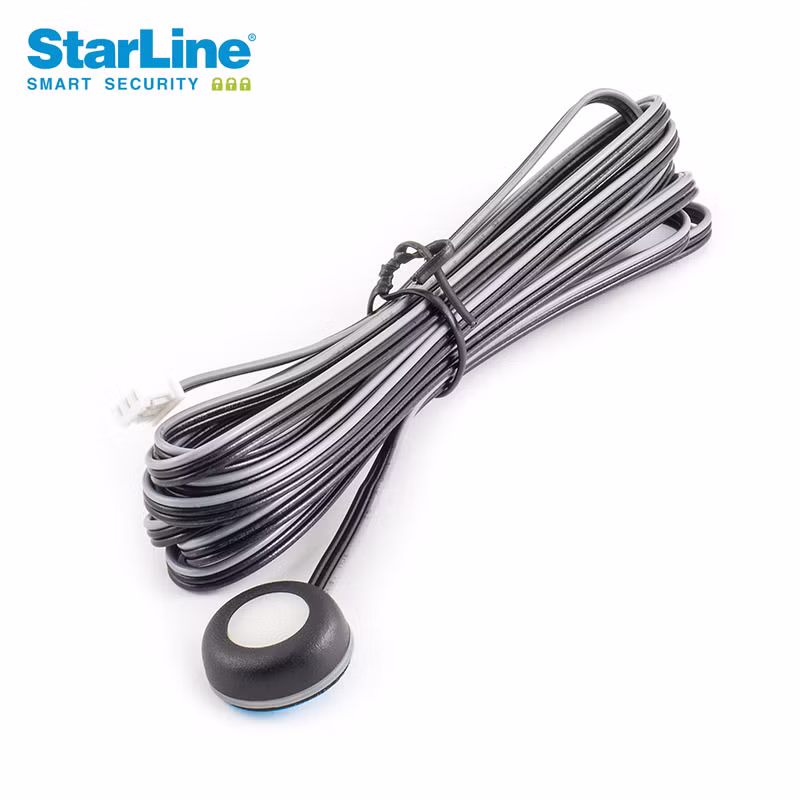

- Service button with integrated status LED
- Single-tone 126dB siren, waterproof
- Micro-USB input for software updates and settings
- Apple iOS and Android smartphone app in German
OPTIONAL ACCESSORIES
- StarLine STAR-R6, waterproof Bluetooth relay
- StarLine STAR-TAG-1 Bluetooth tag
- StarLine STAR-EC capacitive touch sensor
- StarLine STAR-BLE Bluetooth programming interface
IMPORTANT NOTE
An optional nano-SIM card is required for operation. We recommend our TELE2 IoT SIM card including 50MB, 10 SMS, 10 MIN, roaming (EU+3), 12/36 months prepaid.
TECHNICAL SPECIFICATIONS
- Operating temperature -40°C to +85°C
- SIM card format NANO-SIM (4FF) 12.3 x 8.8mm
What does the package for the Mercedes-Benz Marco Polo include?
The package includes the Starline CAN bus alarm system with a 4G modem, GPS/GLONASS tracking, digital iCAN immobiliser and two waterproof STAR-TAG-1 Bluetooth tags. Installation in our workshop is included. The system is not offered separately without installation.
How does the alarm monitor the vehicle?
The system monitors door contacts and battery voltage, as well as movement, tilt and impacts. The shock sensor has pre-alarm and full alarm stages. A waterproof 126 dB single-tone siren provides the audible warning. Sensor events and CAN bus data are logged.
How is the digital immobiliser authorised?
Authorisation is provided by a Bluetooth tag, a suitably configured smartphone or a PIN entered using the vehicle's buttons. Without valid additional authorisation, the iCAN immobiliser blocks engine starting. The vehicle key alone does not replace this authorisation.
How are you notified when an alarm is triggered?
The system can notify you by phone call and push notification. The apps and web portal provide access to the system and its event log. A mobile network connection is required to transmit notifications.
What location and journey information can you view?
You can view the vehicle's location and past journeys, including locations, times and speeds. Individual journeys can be exported as PDFs. Driving style analysis is also provided. Access is available through the Android app, iPhone app or web portal in a browser.
How do geofences work?
You define a location and an individually adjustable radius. Push or email notifications can be triggered when the vehicle approaches or moves away from that area.
How can you control the system?
Control and configuration are available through the German-language iOS/Android app or a browser on a tablet, laptop or desktop computer. You can arm and disarm the system from your smartphone; arming is also possible using the vehicle's remote key. Voice commands, Siri on iPhone, an iPhone widget, assignable buttons and individual colour settings provide further options. A single alarm tone can help you locate the vehicle.
Which functions depend on the vehicle?
Integration of the original alarm and sensors, along with battery, cabin temperature, fuel level and odometer displays, depends on the available CAN bus data. Central locking control, tailgate opening and diagnostic functions may also vary or be unavailable. An identical set of functions should therefore not be assumed for every vehicle.
How can a parking heater be controlled?
The system provides control functions for Webasto and Eberspächer parking heaters. External equipment can be switched on and off through the app and browser when appropriately integrated. This does not establish compatibility with every heater version.
What SIM card is required?
An optional 4FF-format nano-SIM card is required for operation. The specified dimensions are 12.3 x 8.8 mm. The integrated modem supports 4G. Remote access and notifications require a mobile network connection.
Which optional accessories are listed?
The listed accessories are the StarLine STAR-R6 waterproof Bluetooth relay, StarLine STAR-TAG-1 Bluetooth tag, StarLine STAR-EC capacitive touch sensor and StarLine STAR-BLE Bluetooth programming interface. These accessories should be distinguished from the standard package.
What operating temperature range is specified?
The specified operating temperature range is -40°C to +85°C.
| Brand | StarLine |
| Item No. | 35898 |
| Content | 1 Installation |
| Condition | New |
| Weight | 1000 g |
| Customs tariff number | 85311095 |
| Manufacturer | ScPA StarLine Ltd Komissara Smirnova Street 9 194044 Saint Petersburg Russia export@starline.ru |
| EU Responsible Person | Ampire Electronics GmbH & Co.KG Langwadener Straße 60 41516 Grevenbroich Germany support@ampire.de |
