The smart parking heater control, alarm system, localisation, immobiliser, via app for Mercedes-Benz Marco Polo (W447) from model year 2014 onwards

€ 1,599.00 *
Content 1 Installation

Item no. 35902

Workshop items including installation service:

Shipping is excluded.

We need your vehicle for 7 hours for the installation.
  • Return to warmth: Start your parking heater via app or weekly schedule.
  • Alarms straight to your phone: Receive calls and push notifications.
  • Keep your Marco Polo in sight: View location and trip history in-app.
  • The key alone won't start it: Authorise via smartphone or Bluetooth transponder.

With the StarLine alarm system, you can switch your Marco Polo's original parking heater on by app or browser before returning to the vehicle. Alarm monitoring, vehicle tracking and additional start authorisation are brought together in the same system.

This solution is designed for the Mercedes-Benz Marco Polo W447 built from 2014 onwards. It is offered exclusively with installation in our workshop and individual adaptation to your vehicle.

Start the parking heater without being at the vehicle

The system controls the original auxiliary air heater beneath the driver's seat. Heater control is also supported on Marco Polo vehicles with MBUX and MBAC. Choose between direct control, scheduled operation and temperature-based automatic operation:

  • App and browser: switch the heater on or off, or leave it running continuously.
  • Scheduled operation: three weekly programmes with an adjustable running time of 0 to 60 minutes for automatic starts at set times.

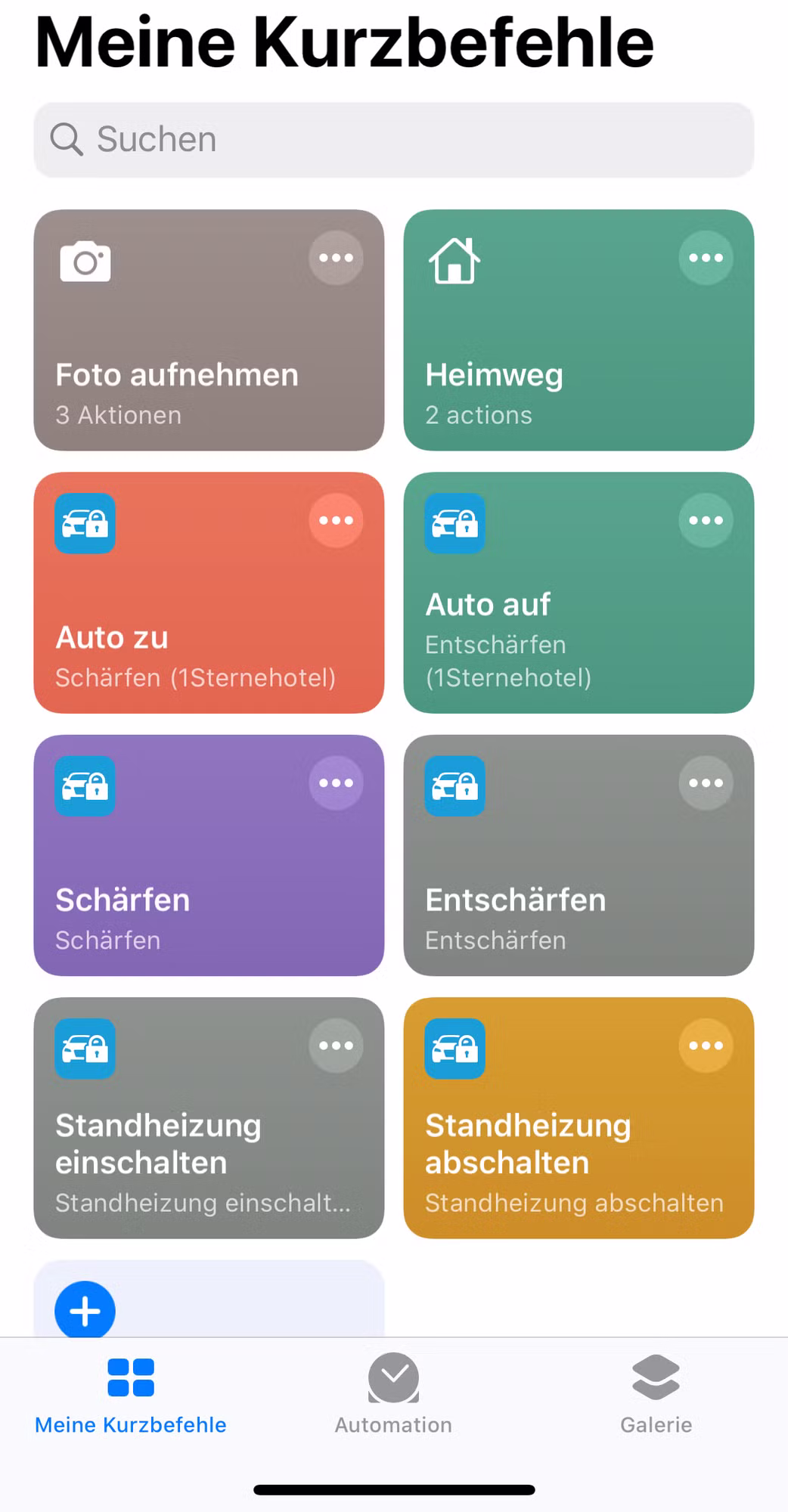

  • Siri Shortcut: start the heater from your iPhone with an adjustable running time of 0 to 60 minutes.
  • Temperature-based operation: enabled using a switch in the footwell. The heater starts at an interior temperature of 5 °C and heats up to 10 °C. This function is intended for using the water tank during winter trips.

Detect changes around the vehicle and receive alarm notifications

CAN-bus monitoring checks the door contacts and battery voltage. Integrated 3D sensing detects movement, changes in inclination and impacts. The two-stage shock sensor distinguishes between a pre-alarm and a full alarm.

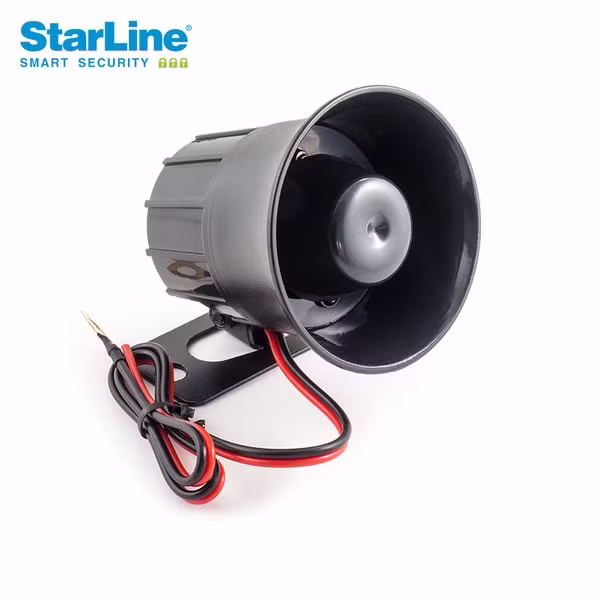

A waterproof single-tone siren rated at 126 dB provides the audible alert. An alarm also triggers a call and a push notification. An event log records sensor events and CAN-bus data so you can review what happened at the vehicle.

Add a separate authorisation step to your vehicle key

The iCAN CAN-bus immobiliser uses a digital engine block. It requires additional authorisation by Bluetooth transponder, smartphone or a PIN entered using the vehicle's buttons. The vehicle key alone does not replace this authorisation.

The system includes two waterproof STAR-TAG-1 Bluetooth transponders. Keyless Entry protection and a hands-free mode using a Bluetooth transponder or authorised smartphone are also included.

Review vehicle location and journey details

GPS and GLONASS enable vehicle tracking through the Android app, iPhone app or browser. Alongside the current location, you can view previous journeys with locations, times and speeds. Individual journeys can be exported as PDFs containing these details. Driving style analysis provides an additional way to review journeys.

Geofences let you define locations and set an individual radius. You can receive a push or email notification when your Marco Polo approaches or moves away from a defined location.

Bring vehicle information and everyday controls together

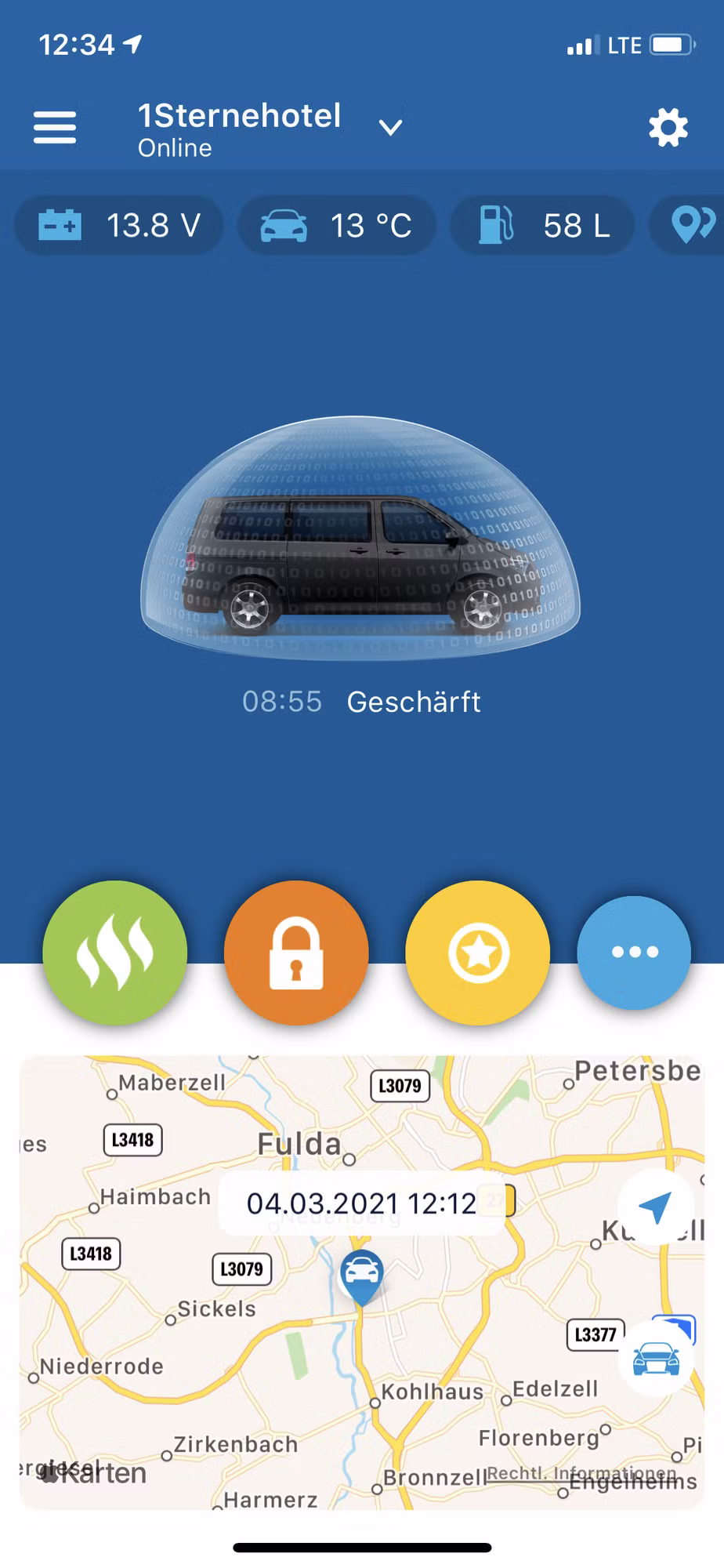

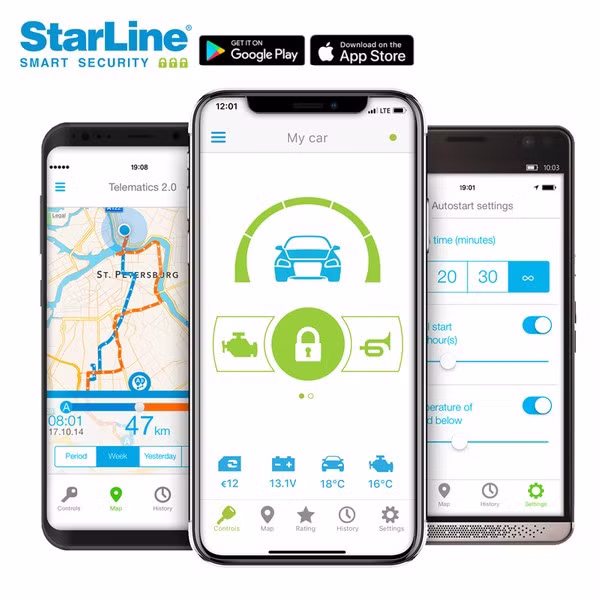

The German-language Apple iOS and Android apps, together with the browser interface on a tablet, laptop or desktop computer, display armed status, vehicle battery information, interior temperature, fuel level and odometer reading. OBD2/CAN diagnostics read vehicle fault messages and display them in the app. Assignable buttons, custom colours and iPhone widgets let you adapt the interface to your preferences. A short alarm tone helps you locate the vehicle.

The system can be armed using the original vehicle remote key. You can arm and disarm it by smartphone or voice command, with Siri control on the iPhone. An existing factory alarm and original sensors can be integrated via CAN bus.

Central locking can also be controlled via CAN bus. Examples include automatic locking when the ignition is switched on or unlocking when the handbrake is applied. The usable status data and functions depend on the individual vehicle; some CAN-bus information may not be provided.

Plan for workshop installation and the required SIM

During workshop installation, the parking heater connection is individually adapted to your Marco Polo. Operation requires a Nano-SIM card; the system includes a 4G modem with the corresponding card reader. Include the required SIM card when planning to use the system.

Product details

StarLine CAN-bus alarm system with CAN-bus immobiliser, GSM and GPS, optimised for the Mercedes-Benz Marco Polo W447

EQUIPMENT

- CAN-bus alarm system, armed using the vehicle's remote key
- 4G modem with Nano-SIM card reader
- GPS & GLONASS tracking system
- CAN-bus immobiliser (iCAN), digital engine block
- 2x STAR-TAG-1 Bluetooth transponders, waterproof
- Bluetooth Smart authorisation by smartphone
- PIN-code authorisation using the vehicle's buttons
- Integrated 3D shock, tilt and movement sensor
- Integrated 2CAN +2 LIN data bus interface
- Keyless Entry protection
- Bluetooth receiver for wireless connection of transponders, relays, programming interface and smartphones.
- Super Slave mode
- Central locking control via CAN bus
- Hands-free mode (Keyless Entry)
- Web portal for GPS tracking
- OBD2 diagnostics
- Integrated temperature sensor
- Webasto & Eberspächer control
- Service button with integrated status LED
- Single-tone siren rated at 126dB, waterproof
- Micro-USB input for software updates and settings
- Apple iOS and Android smartphone app in German

OPTIONAL ACCESSORIES

- StarLine STAR-R6 waterproof Bluetooth relay
- StarLine STAR-TAG-1 Bluetooth transponder
- StarLine STAR-EC capacitive touch sensor
- StarLine STAR-BLE Bluetooth programming interface

IMPORTANT NOTE

An optional Nano-SIM card is required for operation. We recommend our TELE2 IoT SIM card including 50MB, 10 SMS, 10 MIN, roaming (EU+3), 12/36 months prepaid.

TECHNICAL SPECIFICATIONS

- Operating temperature -40°C to +85°C
- SIM card format NANO-SIM (4FF) 12.3 x 8.8mm

Includes individual adaptations for your Mercedes-Benz Marco Polo (parking heater connection for app control)

Which vehicles is the StarLine system designed for?

This solution is designed for the Mercedes-Benz Marco Polo W447 built from 2014 onwards. Control of the original auxiliary air heater beneath the driver's seat is also supported on vehicles with MBUX and MBAC. Individual CAN-bus data and functions based on that data may vary or be absent depending on the vehicle.

How can you control and schedule the parking heater?

The Android app, iPhone app and browser let you switch the heater on and off or leave it running continuously. Three weekly programmes provide automatic starts at set times with a running time of 0 to 60 minutes. Starting the heater through a Siri Shortcut on the iPhone also supports an adjustable running time of 0 to 60 minutes.

How does temperature-based automatic operation work?

Automatic operation is enabled using a switch in the footwell. It starts the parking heater at an interior temperature of 5 °C and heats up to 10 °C. This function is intended for using the water tank during winter trips.

What does the alarm monitor, and how are you notified?

The system monitors door contacts and battery voltage, as well as movement, tilt and impacts. The shock sensor has pre-alarm and full-alarm stages. When an alarm is triggered, the system uses a waterproof 126-dB siren, a call and a push notification. Sensor events and CAN-bus data are recorded in the event log.

How is the immobiliser authorised?

The iCAN CAN-bus immobiliser uses a digital engine block and an additional authorisation step alongside the vehicle key. Authorisation is provided by a Bluetooth transponder, an authorised smartphone or a PIN entered using the vehicle's buttons. Two waterproof STAR-TAG-1 Bluetooth transponders are included.

What information do tracking and geofences provide?

GPS/GLONASS tracking shows the vehicle location and previous journeys with locations, times and speeds. Individual journeys can be exported as PDFs, and driving style analysis adds further information. For geofences, you define locations and radii and can receive push or email notifications when the vehicle approaches or moves away from those locations.

Which vehicle information and everyday controls can you use?

The German-language iOS and Android apps and the browser interface display armed status, vehicle battery information, interior temperature, fuel level and odometer reading. Other functions include OBD2/CAN diagnostics, smartphone or voice-command arming and disarming, iPhone widgets, Keyless functions and central locking control. Automatic locking rules depend on your vehicle's CAN-bus data. An existing factory alarm and original sensors can be integrated.

What is required to operate the system?

A Nano-SIM card is required for operation. The system has an integrated 4G modem with a Nano-SIM card reader. Control and configuration are handled through the iOS or Android app, or through a browser on a tablet, laptop or desktop computer.

Where is the system installed?

The system is offered exclusively with installation in our workshop. The package includes individual adaptations to your Mercedes-Benz Marco Polo, particularly the connection of the original parking heater for app control.

Brand StarLine
Item No. 35902
Content 1 Installation
Condition New
Weight 1010 g
Customs tariff number 85311095
