Ampire 2-way 16.5 cm components with adapter ring suitable for Mercedes-Benz Marco Polo (sold separately)

€ 99.00 *
Content 1 pair

Item no. 7689

Delivery to
  • Full-bodied bass: AMPIRE SC165's 16.5 cm woofers add depth to your music.
  • Detailed highs: 19 mm silk-dome tweeters reveal your music's finer nuances.
  • Tailored treble: Choose between 0 and -3 dB tweeter levels.
  • Protected speakers: Metal grilles shield tweeters and woofers from accidental contact.

The Ampire SC165 2-way component speaker system lets you position the tweeters separately from the woofers. Installation in a Mercedes-Benz Marco Polo requires a suitable adapter ring, which is sold separately.

Separate drivers for low and high frequencies

The 16.5 cm woofers use paper cones, while the separate 19 mm tweeters feature silk domes. When matching the system to your audio equipment, consider its 60-watt RMS power handling and 4-ohm impedance. Maximum power handling is 120 watts; this is not the same as the RMS rating.

Adjust the treble level to suit your preferences

The 0/-3 dB level adjustment allows you to reduce the tweeter level by 3 dB when needed. The separate inline tweeter crossovers are rated at 12 dB and have a high-pass crossover frequency of 5,000 Hz.

Position the tweeters and protect the drivers

The angled mounting brackets help you orient the tweeters. Metal protective grilles are included for both the woofers and tweeters. The system comes with the following mounting and protective accessories:
- metal protective grilles for tweeters and woofers
- angled tweeter mounting brackets
- surface-mount accessories for the tweeters
- separate inline tweeter crossovers

Check the installation requirements for your Marco Polo

The suitable adapter ring is sold separately and is not included. Before installation, check that the ring matches your vehicle, that the existing connections are suitable and that there is enough space for the 61 mm mounting depth. The product information does not explicitly confirm compatibility with either the W447 or W639 model series.

TECHNICAL DATA

- 16.5cm / 6.5'' woofer
- 19mm silk dome tweeter with surface-mount accessories
- 12dB tweeter crossover with 0/-3dB level adjustment
- High-pass crossover frequency: 5000Hz
- Power handling 60 watts RMS / 120 watts max.
- Frequency response 56Hz to 22,000Hz
- Sound pressure level 89dB (1W/1m)
- Impedance 4 ohms
- Mounting depth 61 mm

What is the Ampire SC165 component speaker system?

The SC165 is a 2-way component speaker system with 16.5 cm paper cone woofers and separate 19 mm silk dome tweeters. The separate design lets you position the tweeters independently of the woofers.

Which Mercedes-Benz Marco Polo models is the system suitable for?

Installation in a Mercedes-Benz Marco Polo requires a suitable adapter ring, which is sold separately and is not included. Compatibility with W447 or W639 is not explicitly confirmed and must be checked against the adapter ring and the intended mounting location.

Which installation dimensions and electrical specifications matter?

The specified mounting depth is 61 mm and the impedance is 4 ohms. Before installation, check the available space, the existing speaker connections and compatibility with the audio equipment being used.

How can the treble level be adjusted?

The separate inline tweeter crossovers provide 0/-3 dB level adjustment, allowing the tweeter level to be reduced by 3 dB when required. The specifications list a 12 dB tweeter crossover and a high-pass crossover frequency of 5,000 Hz.

What are the power handling and frequency response specifications?

Power handling is 60 watts RMS and 120 watts maximum. The frequency response extends from 56 Hz to 22,000 Hz. The specified sound pressure level is 89 dB at 1 watt measured at a distance of 1 metre.

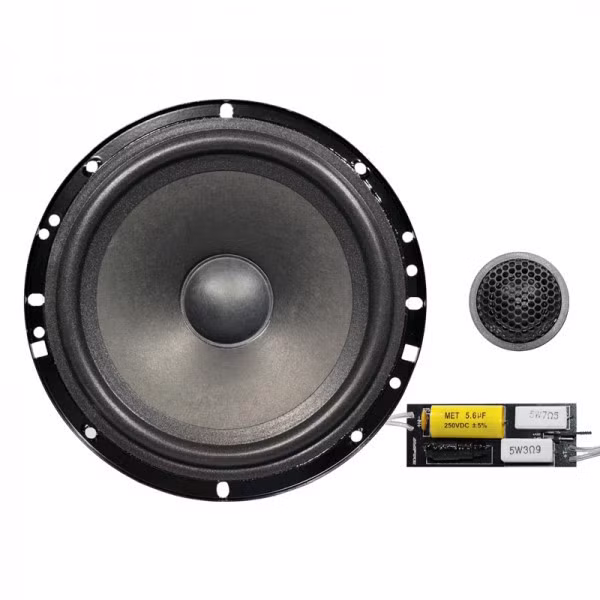

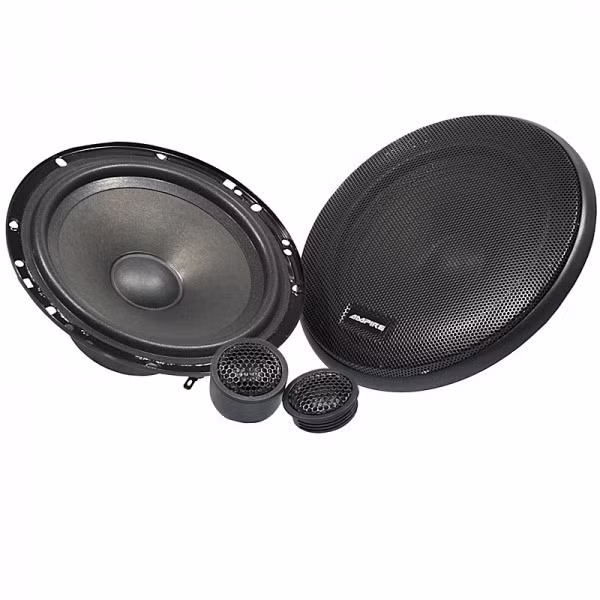

What is included with the system?

The system includes woofers and tweeters, metal protective grilles for both driver types, angled mounting brackets and surface-mount accessories for the tweeters, plus separate inline tweeter crossovers. The vehicle-specific adapter ring is sold separately and is not included.

optional *

plus 199€.

We need your vehicle for 3 hours for the installation.


The order creation for optional installation service is done manually, in this case please do not order online.

Brand Ampire
Item No. 7689
Content 1 pair
Condition New
Weight 1900 g
Customs tariff number 87089997
