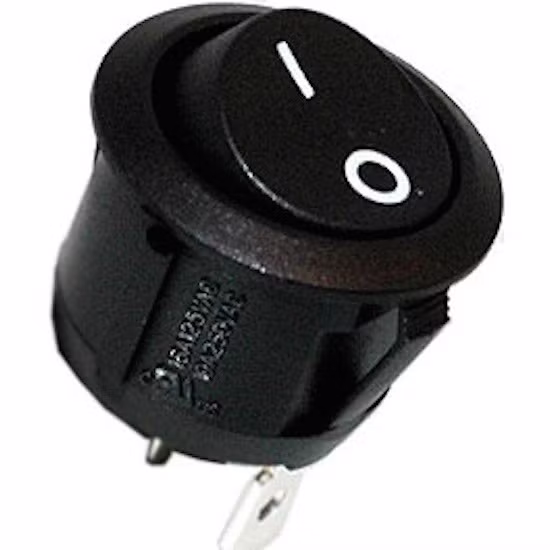

Round rocker switch ON | OFF in snap-in design, switching current max.: 10A/250V AC
- On or off in one press: Simple control with a rocker switch.
- Simple snap-in fitting: Mounts in a 20.2 mm panel cutout.
- Compact footprint: 23.5 mm outer diameter and 24.3 mm mounting depth.
- Switch AC circuits: Up to 10 A at 250 V AC.
Item no. 7756
The round ON | OFF rocker switch lets you switch a circuit on and off within the stated electrical limits. Its snap-in design clips into a suitable panel cutout.
Plan your installation around the mounting dimensions
The switch requires a 20.2 mm panel cutout. Its outer diameter is 23.5 mm and its mounting depth is 24.3 mm. Allow additional space behind the mounting surface for the connecting wires.
Match the current rating to your load
The maximum operating voltage is 250 V AC. The maximum switching current is 10 A at 250 V AC. For inductive loads, the lower limit of 4 A maximum applies.
Choose matching wiring connectors
The silver-plated blade terminals measure 4.8 x 0.8 mm. Select mating connectors for your wiring that match these dimensions.
Check suitability for your Marco Polo before fitting
The supplied product data does not confirm model-specific fitment for the Mercedes-Benz Marco Polo W447 or Viano Marco Polo W639. No switching rating is stated for 12 V or 24 V DC. Before selecting the switch, compare its mounting dimensions and terminals with the electrical requirements of your installation.
Technical data
Maximum operating voltage: 250V AC
Maximum switching current: 10A/250V AC
Maximum switching current for inductive loads: 4A
Maximum ambient temperature: 85°C
Insulation resistance (500V DC): >100MOhm
Body and rocker: Nylon 6.6/UL94V2
Terminals: silver-plated
Blade terminals: 4.8x0.8mm
Panel cutout: 20.2mm
Mounting depth: 24.3mm
Outer diameter: 23.5mm
Manufacture: RoHS-compliant
Quantity supplied: 1 piece
What is the round rocker switch designed for?
The rocker switch switches a circuit on and off within the stated electrical limits. Its snap-in design clips into a suitable panel cutout.
Which mounting dimensions do you need to consider?
The panel cutout is 20.2 mm, the outer diameter is 23.5 mm and the mounting depth is 24.3 mm. Allow additional space for the connecting wires.
What voltage and switching currents are specified?
The maximum operating voltage is 250 V AC. The maximum switching current is 10 A at 250 V AC. For inductive loads, the stated maximum is 4 A.
What terminals does the switch have?
The switch has silver-plated blade terminals measuring 4.8 x 0.8 mm. The mating connectors on your wiring must match these dimensions.
What should you consider before using it with 12 V or 24 V DC?
No switching rating is stated for 12 V or 24 V DC. The AC ratings do not establish suitability for a vehicle's DC electrical system. The 500 V DC figure relates only to the insulation resistance.
How do you check suitability for a Marco Polo W447 or Viano Marco Polo W639?
The supplied product data does not confirm model-specific fitment. Compare the available mounting space, terminal dimensions and electrical requirements with the switch specifications.
What material, temperature and insulation specifications are provided?
The body and rocker are made from Nylon 6.6/UL94V2. The maximum ambient temperature is 85 °C. Insulation resistance at 500 V DC is greater than 100 MOhm. Manufacture is RoHS-compliant.
What is supplied?
The quantity supplied is 1 round ON | OFF rocker switch.
