Ampire dual dashcam in 2K (Quad HD) resolution with WiFi and GPS for brilliant recording while driving
The perfect travelling companion.
Item no. 36226

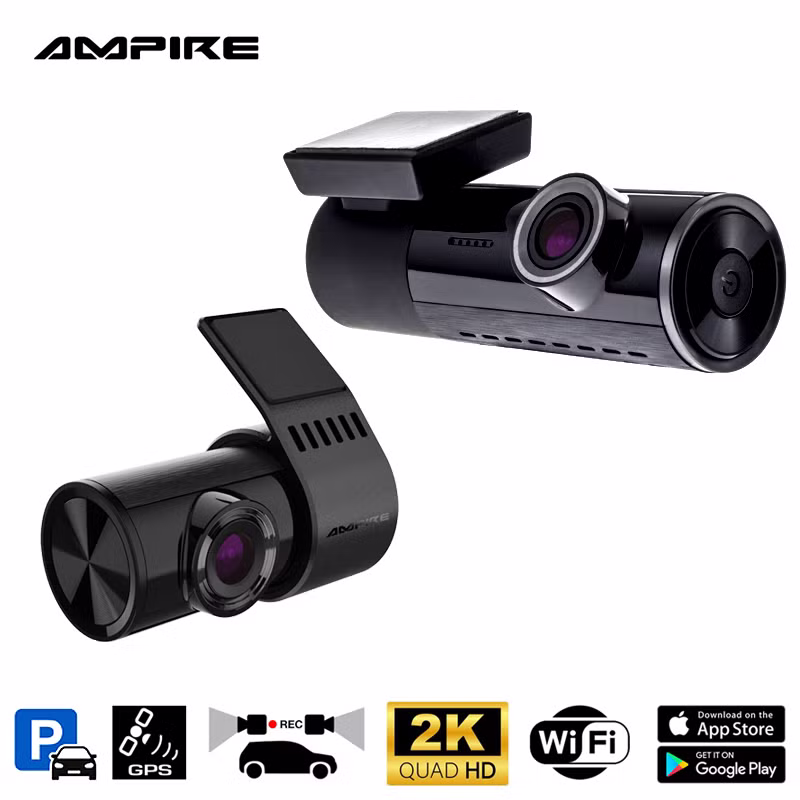

AMPIRE dual dashcam DC2-PRO with high-resolution 2K (QUAD-HD) front cameras and microphone for recording at the front and rear with storage on an optional microSD card (32-128 GB) and complete operation via free smartphone app. An integrated GPS sensor enables positioning and speed determination. The 3D G-sensor integrated in the front camera recognises accidents and automatically saves events on the microSD card. You can view and export the recordings on your smartphone or tablet via WiFi. All settings can also be conveniently made using the smartphone app.
Visually, the matt black DC2.PRO dashcam is rather small and unobtrusive. An LCD display and unnecessary buttons and lighting have been deliberately omitted. Installed behind the interior mirror, the front camera is barely noticeable. The rear camera can be used to monitor the passenger compartment or rear traffic.
Features
143° wide-angle lens (diagonal field of view)
2844x1600 pixel resolution (5MP)
30/25fps frame rate (front/rear)
Integrated GPS receiver for positioning
Integrated 3-axis G-force sensor (adjustable)
Integrated WiFi for control via smartphone
Mini-USB 2.0 Hi-Speed interfaces
Storage on optional microSD card (Class 10)
Voltage stabilisation via super capacitor
Integrated microphone for sound recording (can be switched off)
German/English voice messages (can be switched off)
Parking mode

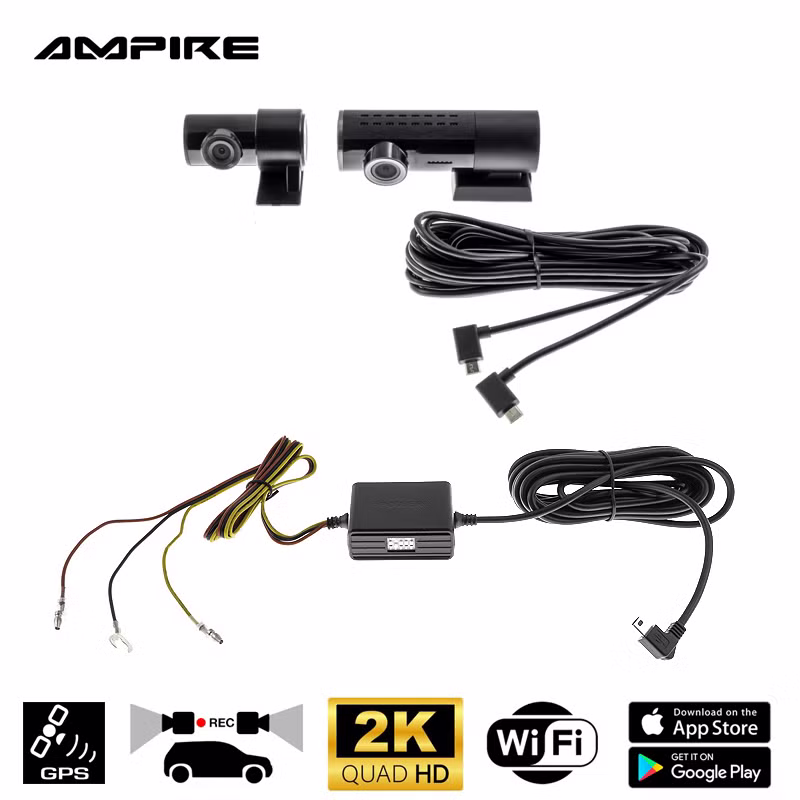

Scope of delivery

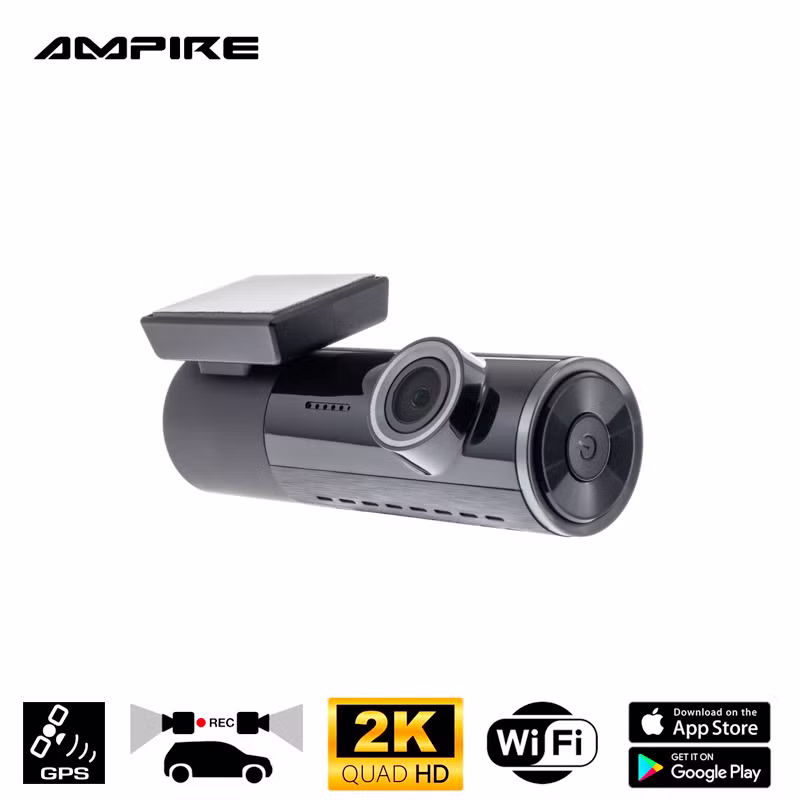

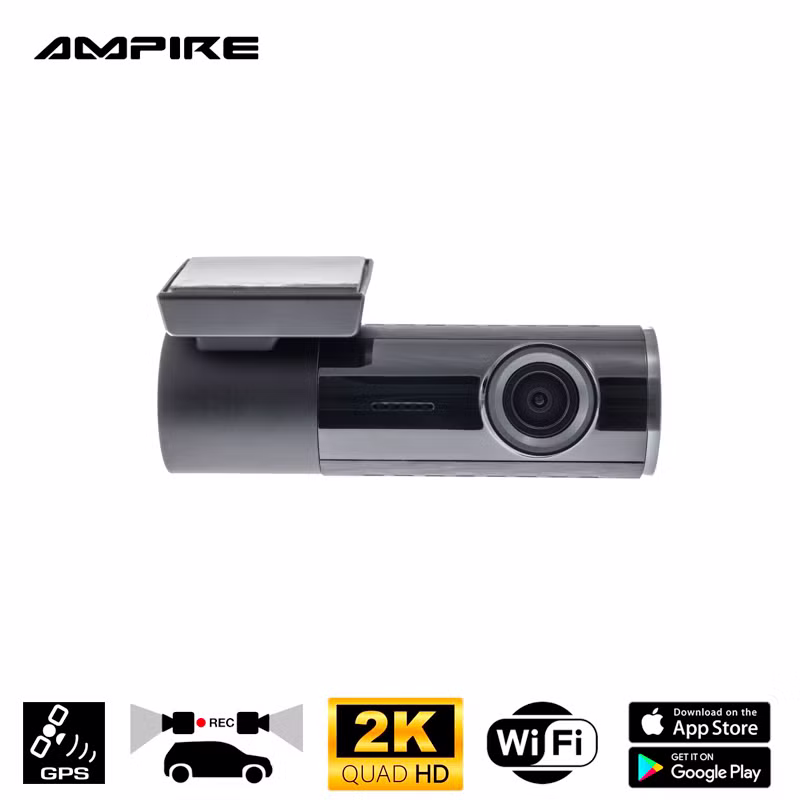

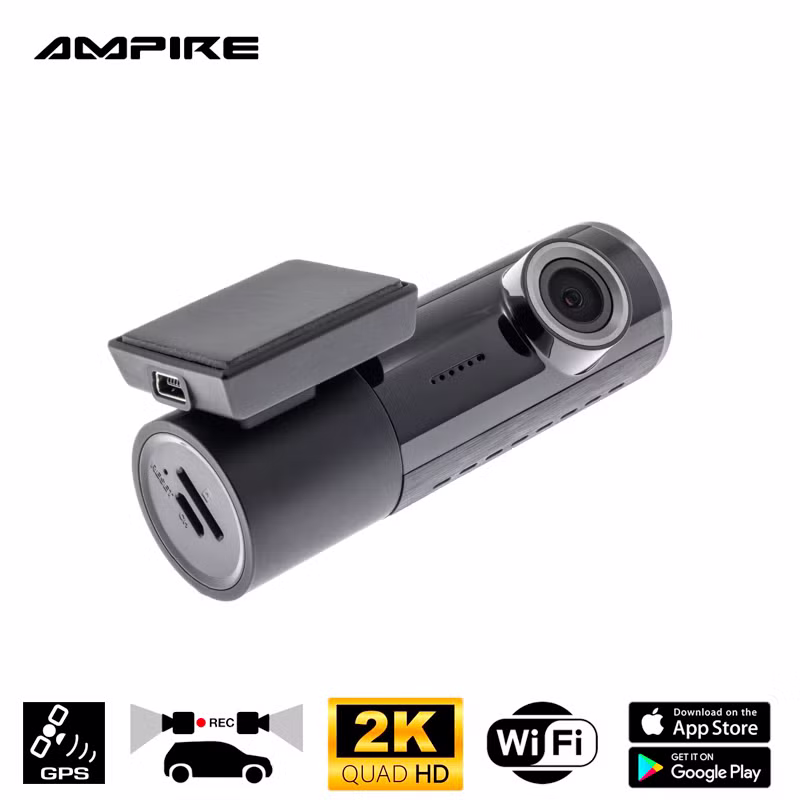

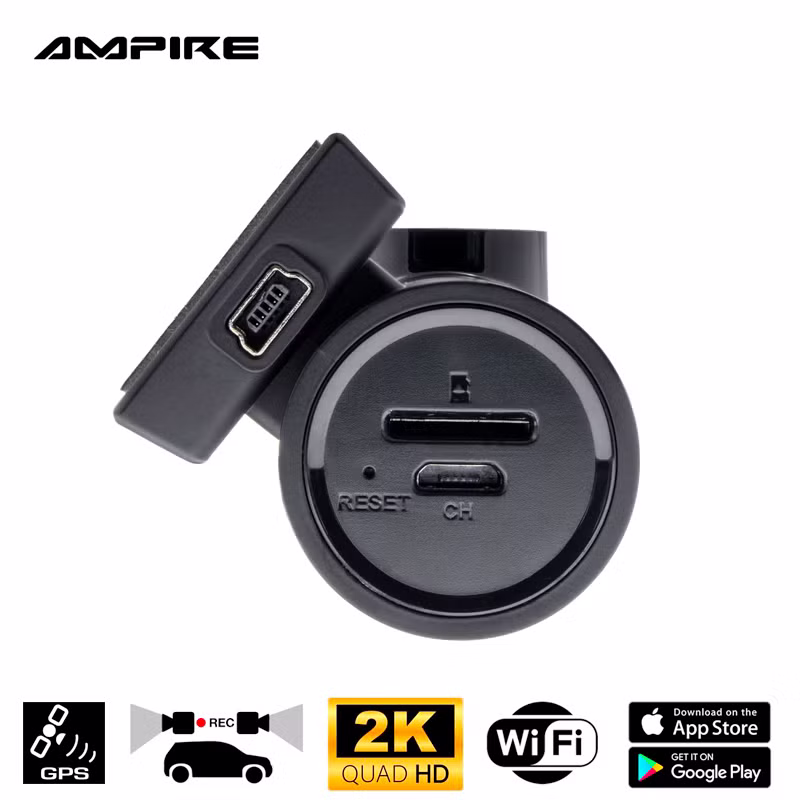

1x front camera with integrated GPS receiver

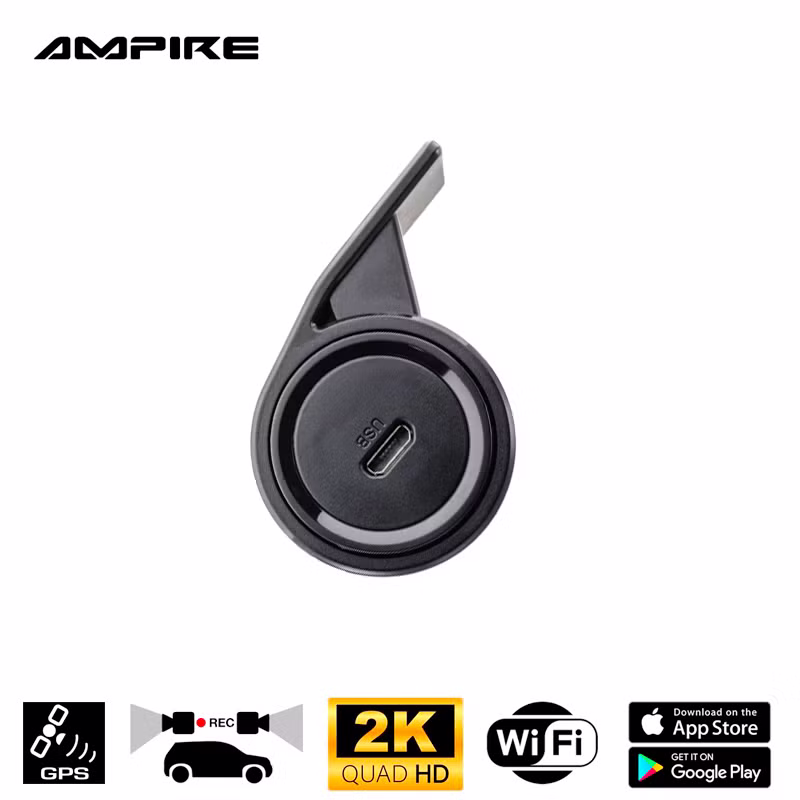

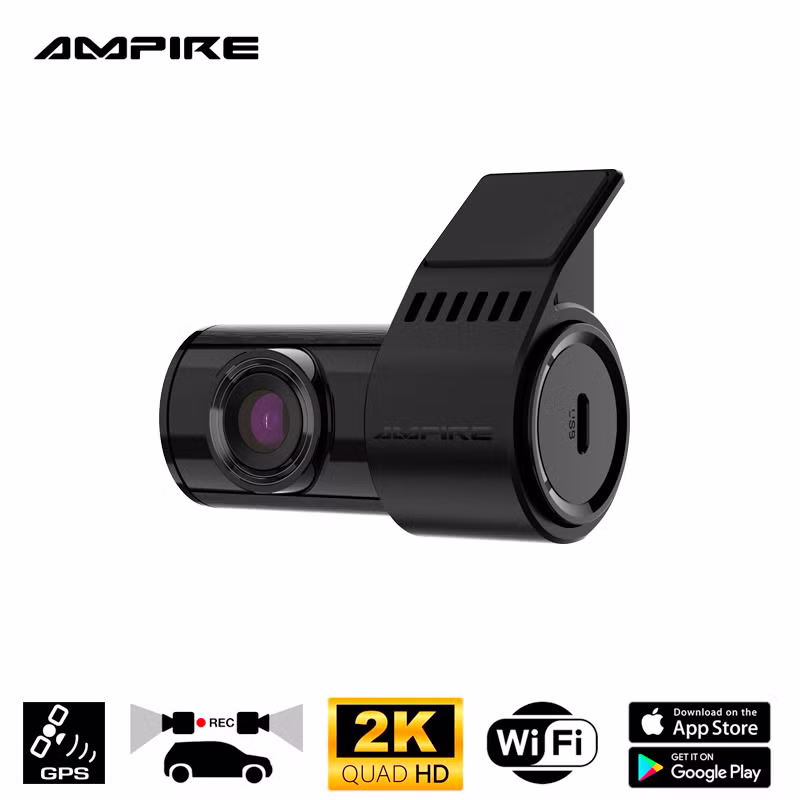

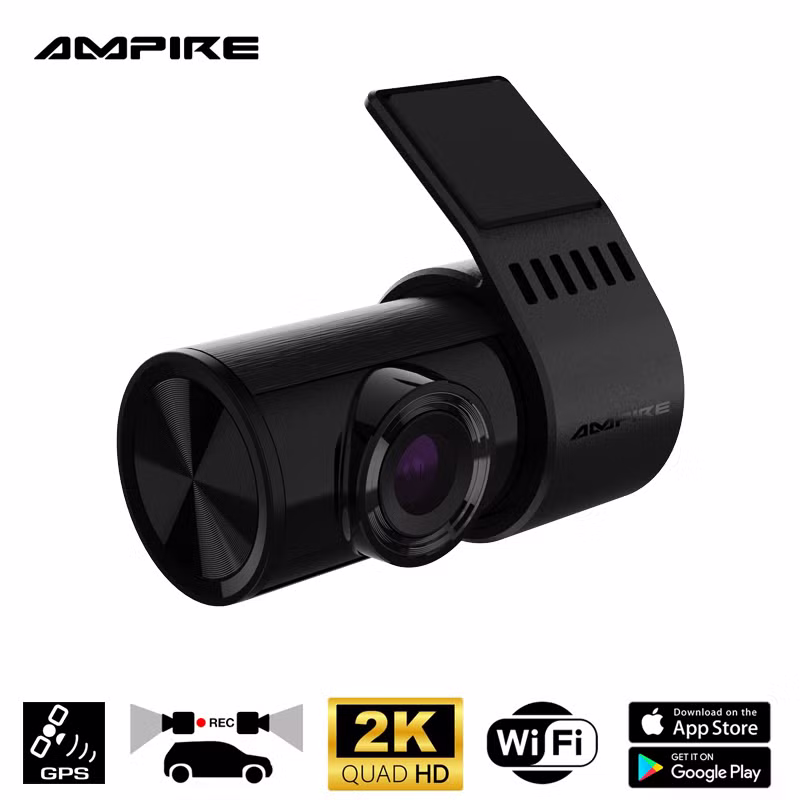

1x rear camera

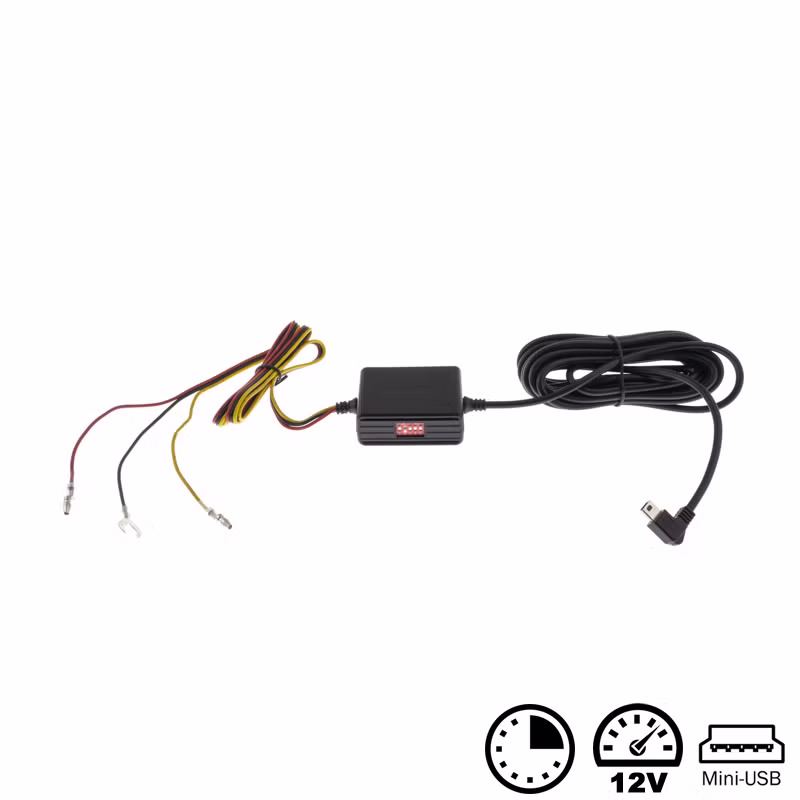

1x ACC2 power supply unit with voltage monitoring and switch-off delay

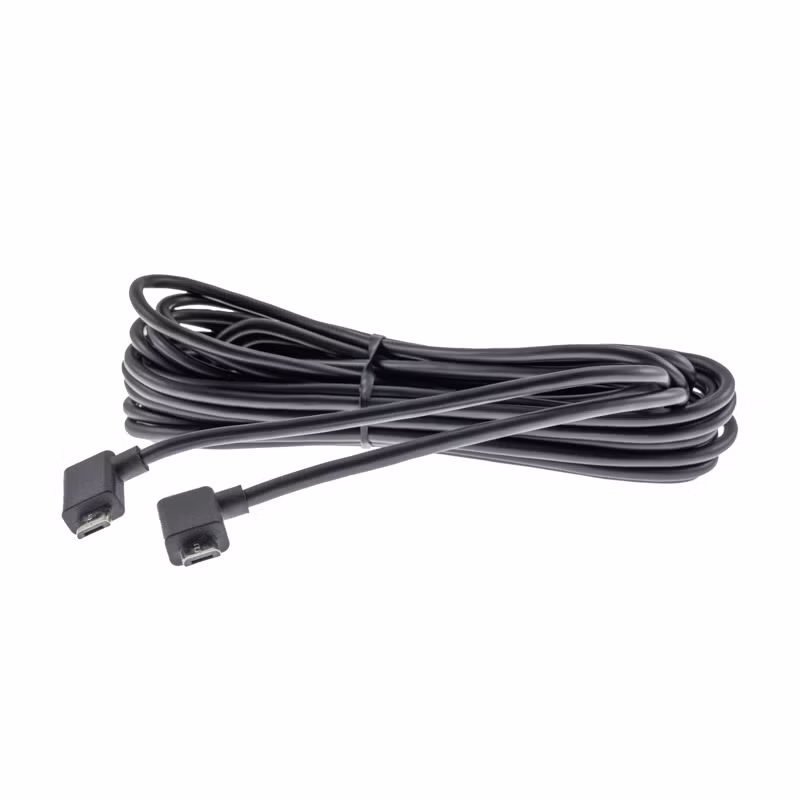

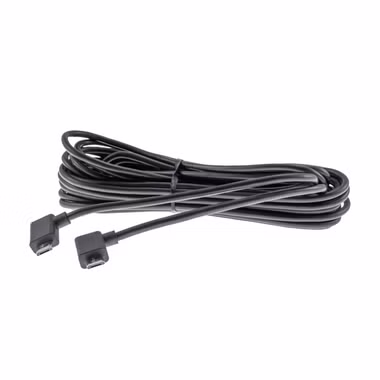

1x 8m connection cable to the rear camera
1x Operating instructions DEU/ENG
1x CE declaration of conformity DEU/ENG
Technical data
Viewing angle front camera: D:143°
Front camera image sensor: SONY IMX335
Front camera resolution: 2844x1600 pixels (5MP)
Front camera lens: 6G-1R, F1.9
Frame rate front camera: 30 FPS
Rear camera image sensor: AHD GC2053
Rear camera resolution: 1920x1080 pixels (2MP)
Frame rate rear camera: 25 FPS
Image ratio: 16:9 format
Operating temperature: -20° C ~ +70° C
Flash memory: 8 Mbytes

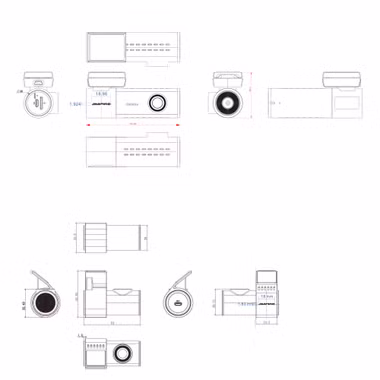

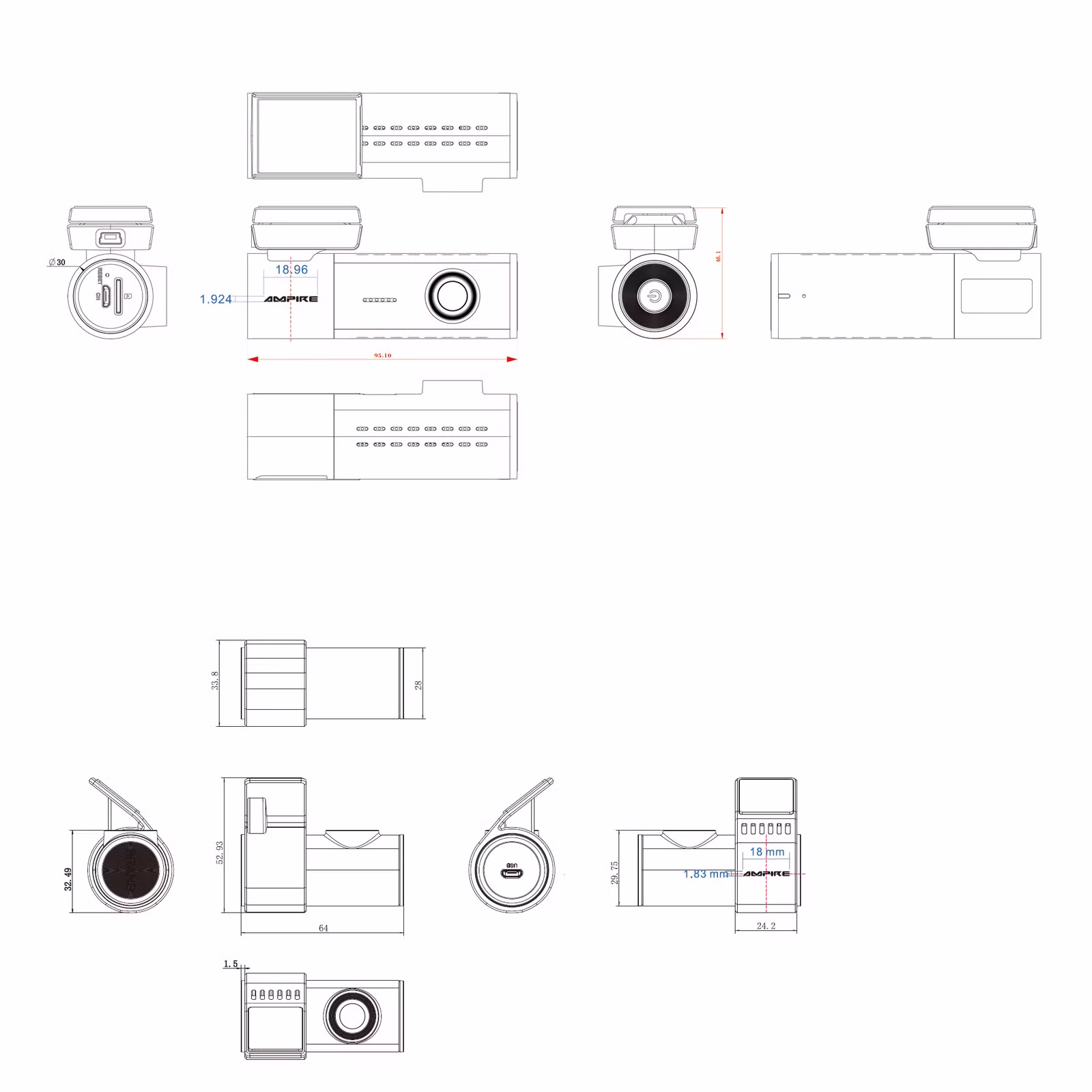

Front dimensions: 36 x 41 x 95 mm (W x H x L)
Rear dimensions: 36 x 37 x 63 mm (W x H x L)
Power consumption 610mA (boot time)
Power consumption 470mA (operation)
Duration until start of recording ~8 sec.

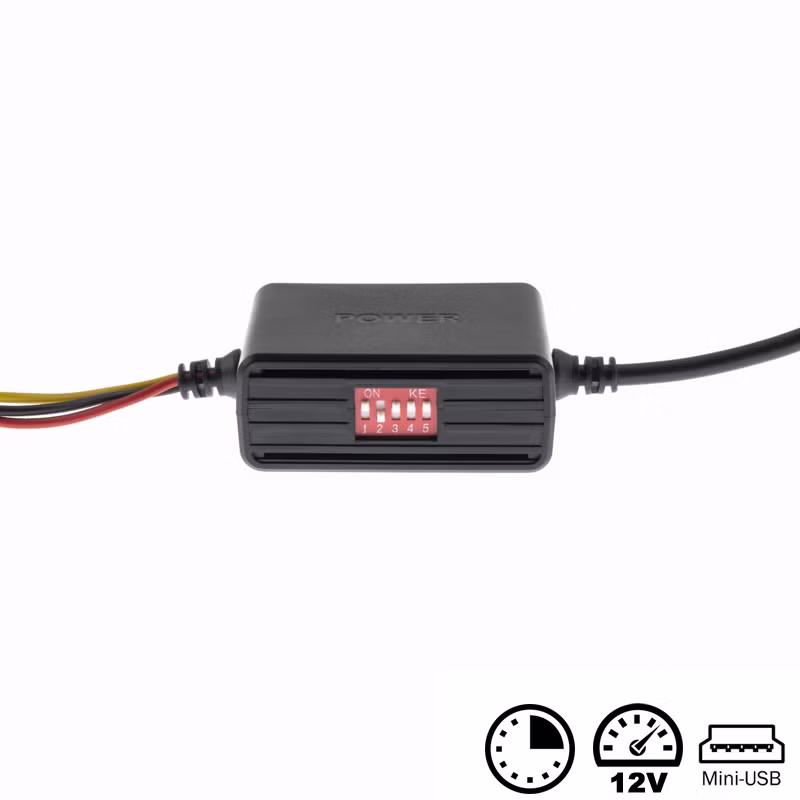

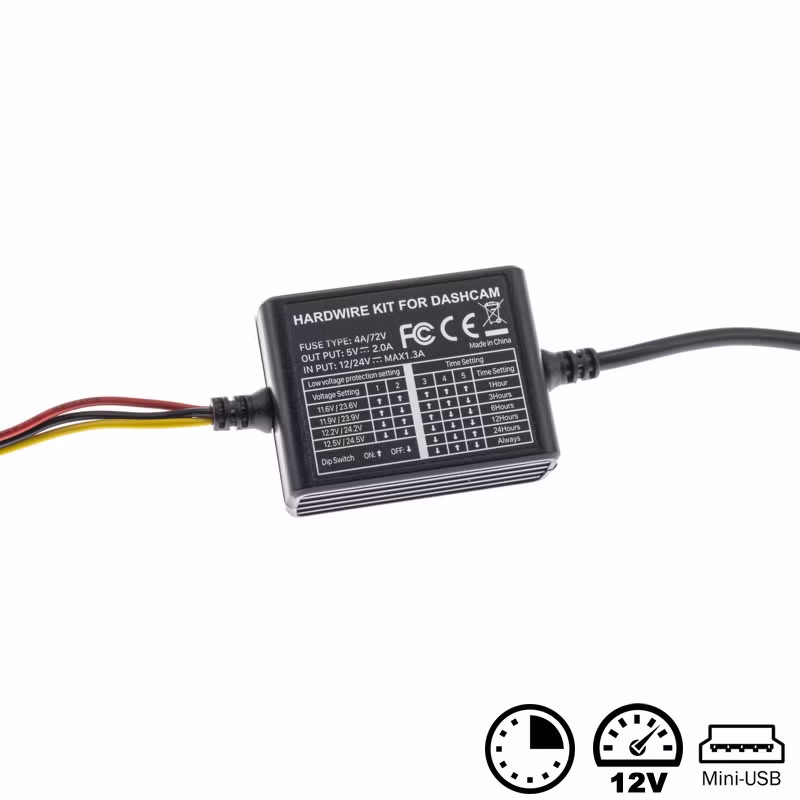

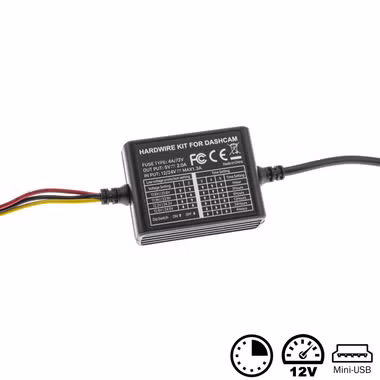

Technical data power supply unit
Adjustable switch-off voltage 11.6/11.9/12.2/12.5 volts (car) or 23.6/23.9/24.2/24.5 volts (lorry)
Adjustable switch-off time after: 1h, 2h, 4h, 6h, 12h, 24h and permanently
Operating voltage 12 or 24 volts DC
Max. Input current 2000mA@12 VDC, 1000mA@24VDC
Output connector MINI-USB
Output voltage 5 Volt, 2A
Dimensions 60 x 26 x 18mm
Storage temperature -20°C to 85°C at 0-90% RH
Operating temperature -10°C to 60°C
Fuse 2A/30V
Efficiency 85%
Smartphone App
The following languages are supported by the AMPIRE DC2 App for this dashcam: German, English, Spanish, Chinese, Estonian, Greek, Latvian, Polish, Russian, Slovak, Czech, Ukrainian
PC app
To view the downloaded videos on a PC, we recommend the free VLC video player. With some Windows video players, no sound is output.
https://www.vlc.de/
Legal notice
What is allowed and what is not:
https://www.adac.de/verkehr/recht/verkehrsvorschriften-deutschland/dashcam/
Important note on installation
The GPS antenna integrated in the dashcam requires free reception to the GPS satellites in order to be able to calculate a position or speed. Windscreens with insulating glass have an infrared-reflecting metallic coating. In such vehicles, position the dashcam in the communication window provided for this purpose in most vehicles, which allows GPS reception. You will find more detailed information on this in the car's operating instructions.
Technical characteristic | Value |
---|---|
Manufacturer | Ampire |
Model | DC2-Pro |
Content | 1 Set |
Condition | New |
Weight | 400 g |
