Spare part: Front locking mechanism (2 pieces / left and right) for the rear pull-out - Already included in the scope of delivery of the pull-out
- Lock the rear slide-out again: Replacements for broken front latches.
- Replace both sides: Two latches supplied, one left and one right.
- Adjust for zero play: Align latches using slotted holes; follow instructions.
- Only needed as replacements: Latches already come with the rear slide-out.
Item no. 36507
This replacement set lets you replace the left- and right-hand front latches on your rear slide-out drawer. The slotted mounting holes allow you to adjust the latches so that the drawer has no play when locked.

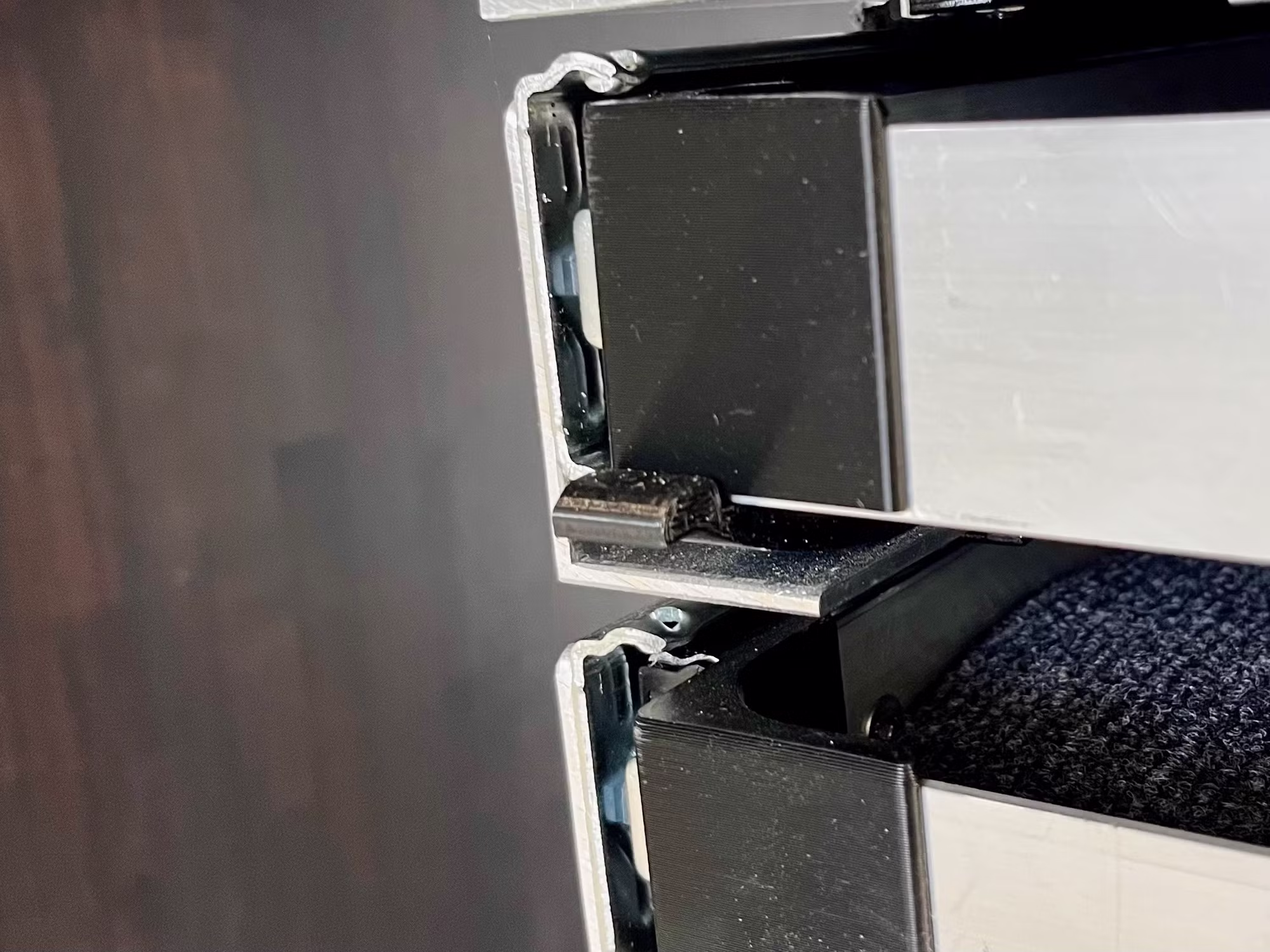

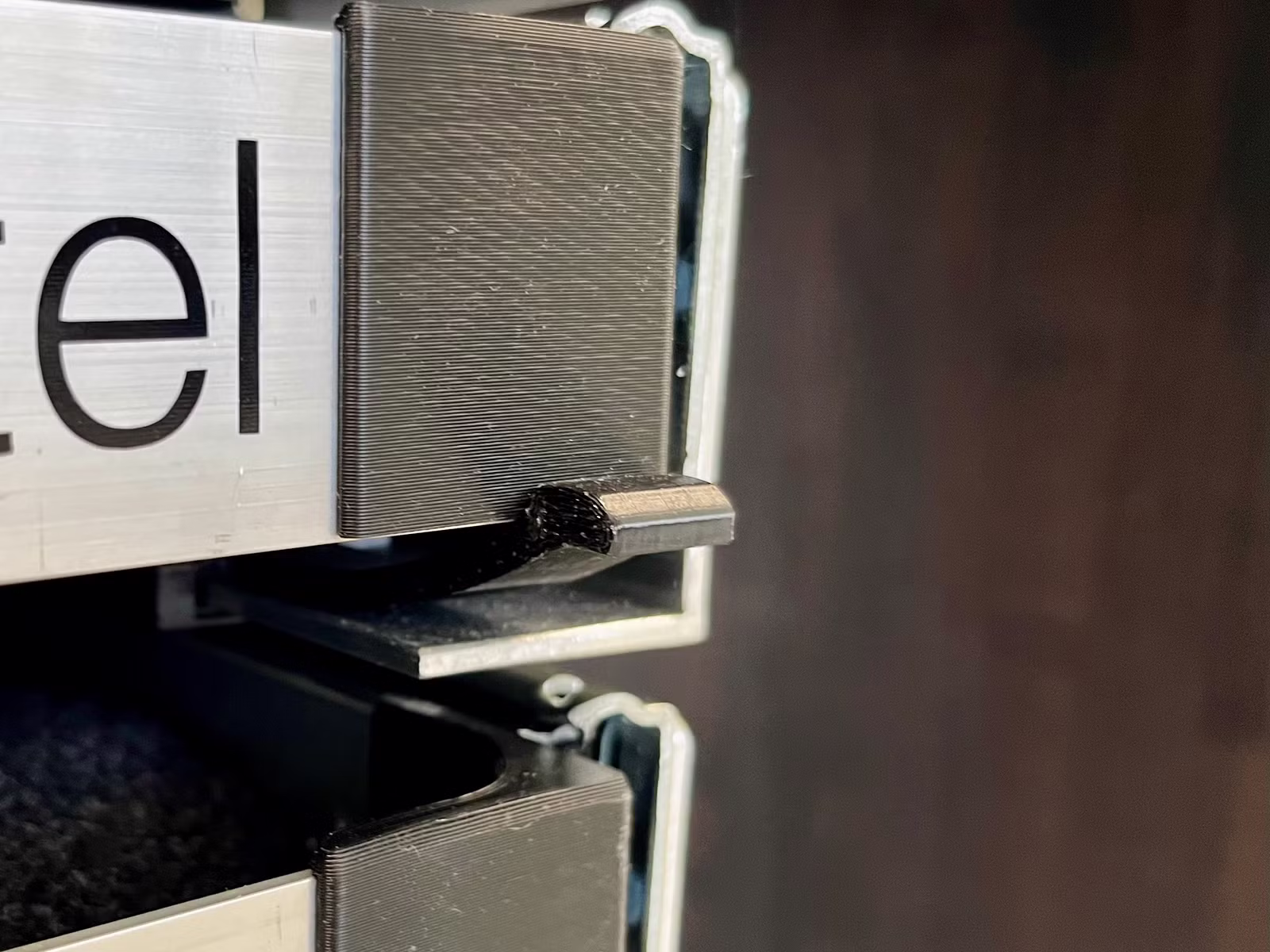

Replace the left and right latches as a pair
The set contains 2 latches: one left and one right. These latches are already included with the rear slide-out drawer; this set is intended as a replacement. The design was deliberately chosen as an alternative to visually intrusive utility hinges.
Adjust the latches to eliminate play
Both latches must sit directly against the drawer. Adjust their position using the slotted holes until there is no play when the drawer is locked. After fitting, check both sides and make sure the locked drawer cannot move.
If any play remains, readjust the latches. If necessary, the two rear stops with rubber buffers can also be adjusted by bending them to suit, so that the drawer sits firmly in place.
Avoid loads that can cause the latches to break
The following situations can damage the latches:
- The rear bench seat is pushed backwards and strikes the boxes in the drawer with force.
- The latches are incorrectly fitted or adjusted, leaving play in the drawer. Check the fit after shipping as well.
- The latches are not operated as described in section 13 of the installation instructions.
Keep your load in place and follow the operating instructions
Everything carried in the rear slide-out drawer must stay firmly in place. Boxes and bags must also be positioned so that they cannot slide and build up momentum. Use the carpet supplied with the rear slide-out drawer to reduce box movement. When moving the rear bench seat backwards, make sure it does not strike the load.
Follow the installation instructions for fitting and operation. Pay particular attention to section 13 on operating the latches.
What does the replacement set contain?
The set contains two front latches for the rear slide-out drawer: one for the left side and one for the right. These latches are already included with the drawer; this set is intended as a replacement.
Which rear slide-out drawer is this set intended for?
The set is intended to replace the front latches on the corresponding rear slide-out drawer. The product information does not establish general compatibility with other drawers or specify compatibility with individual vehicle variants.
How are the front latches fitted?
Fit the left and right latches directly against the drawer. Adjust their position using the slotted mounting holes until the locked drawer has no play. Check both sides after fitting.
What should you do if the locked drawer still has play?
First, readjust the latches using their slotted mounting holes. If necessary, the two rear stops with rubber buffers can also be bent to adjust their position. Then check again that the locked drawer sits firmly without play.
Why can a latch break?
Possible causes include the rear bench seat being pushed backwards into the boxes with force, incorrect fitting that leaves play in the drawer, or operation that differs from section 13 of the installation instructions. Check for play after shipping as well.
How should the latches be operated?
The intended operation is described in section 13 of the installation instructions. Follow that section to avoid incorrect operation.
How should items be stored in the rear slide-out drawer?
Position the load so that it stays firmly in place. Boxes and bags must not be able to slide and build up momentum. Use the carpet supplied with the rear slide-out drawer to reduce box movement. Also make sure the rear bench seat does not strike the load when pushed backwards.
The order creation for optional installation service is done manually, in this case please do not order online.
| Brand | 1sternehotel |
| Item No. | 36507 |
| Content | 1 pair |
| Condition | New |
| Weight | 300 g |
| Customs tariff number | 87089997 |
| Manufacturer | Axel Seidel Peter-Seifert Str. 10 36129 Gersfeld Germany hello@1sternehotel.de |
