Mercedes-Benz Marco Polo W639 & W447 Switch frame seat adjustment in rear seat - Mercedes-Benz Genuine Parts
Item no. 36066
- Switches back in place: Replaces the frame with broken retaining tabs.
- Genuine replacement: Mercedes-Benz switch surround for Marco Polo W639 and W447.
- Keep your existing switches: Transfer them into the new frame.
- Fits your rear bench: Suitable for leather and fabric upholstery.

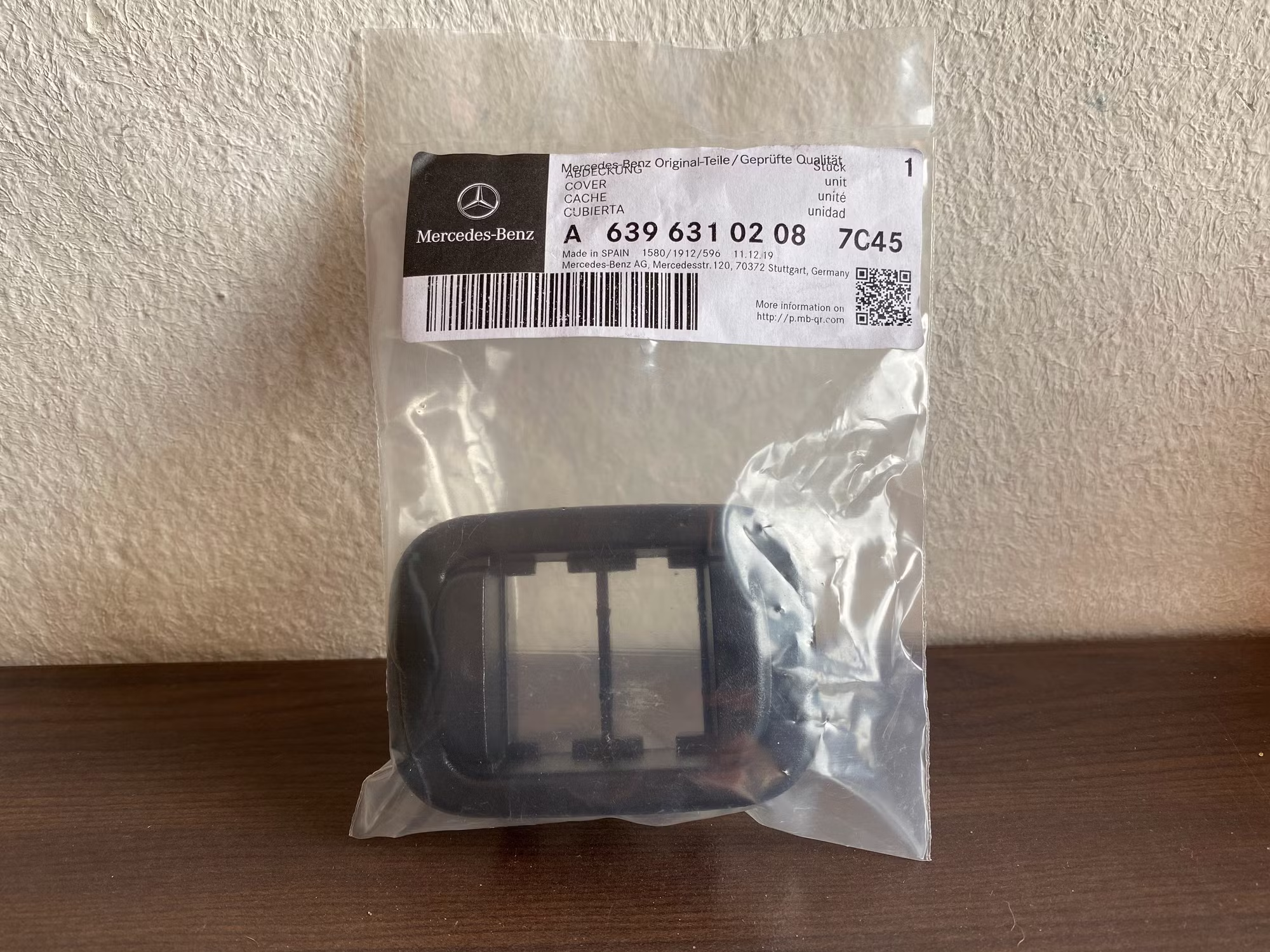

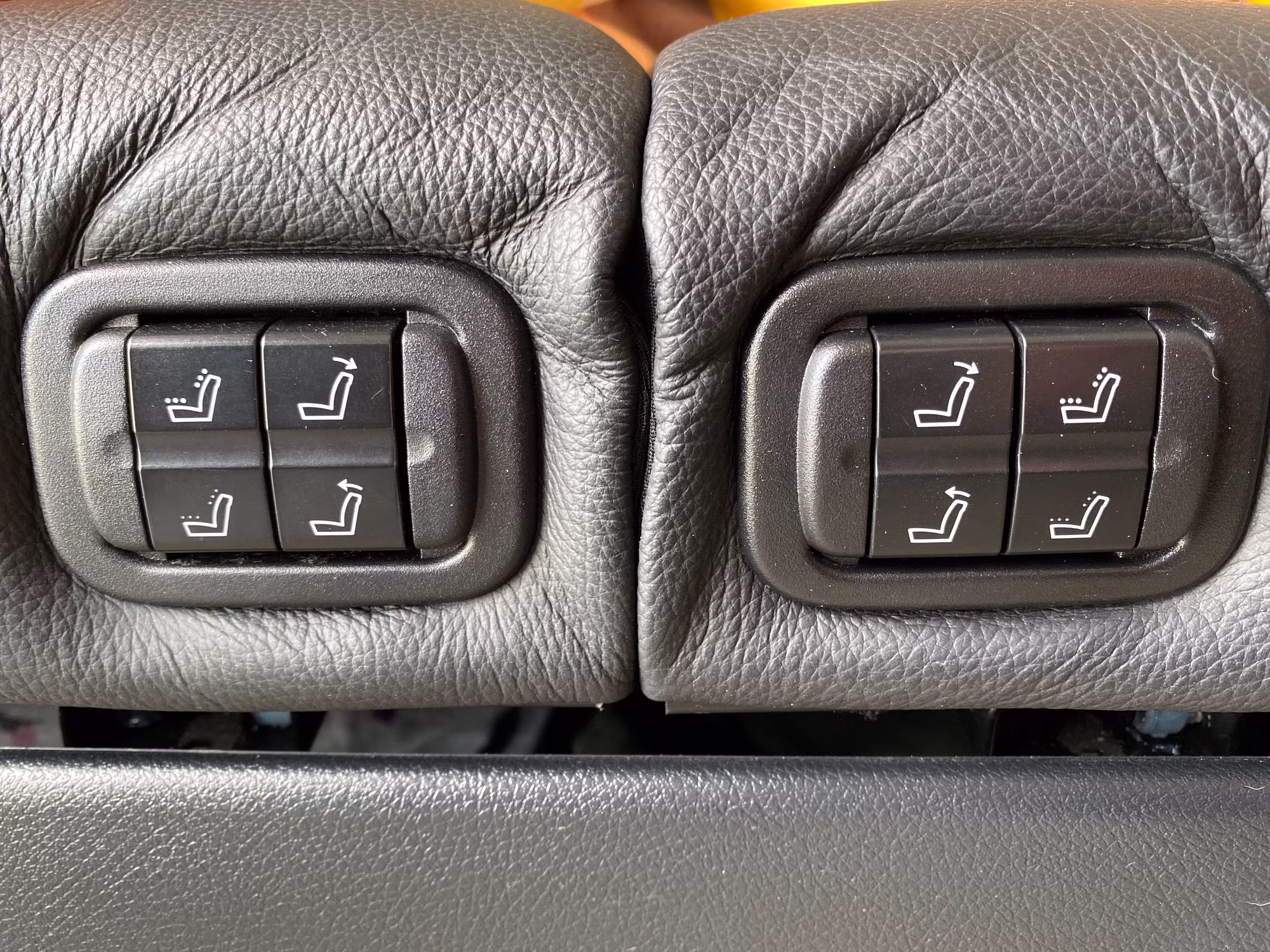

The genuine Mercedes-Benz switch surround replaces a damaged surround for the rear bench seat adjustment switches in your Marco Polo W639 or W447. This allows the existing switches to sit in their intended position rather than protruding from the bench seat.
Replace the damaged surround and keep your switches
Sitting too far forward on the front edge of the rear bench seat can break the surround's retaining tabs. This can leave the switches projecting further out of the bench seat than intended.
The replacement surround is made from ABS plastic. The two existing switches are reused, with each switch held in the new surround by two retaining tabs.
Suitable for leather or fabric upholstery
The surround fits the Mercedes-Benz Marco Polo W639 and W447 with leather or fabric rear bench seat upholstery.
Please note the different model designation W369 in the technical data below. Before choosing this part, compare part number A63963102087C45 with the replacement part specified for your vehicle.
How to transfer the switches to the new surround
- Pull the existing surround, including both switches, forwards out of the rear bench seat.
- Disconnect the two electrical connectors for the seat adjustment controls.
- Press down the two retaining tabs on each switch and pull the switches forwards out of the surround.
- Insert both switches into the new surround, keeping their original orientation. Each switch is held by two retaining tabs.
- Reconnect both electrical connectors and press the surround, complete with the switches, back into the rear bench seat.
Technical data
ABS plastic
Suitable for the following vehicles:
Mercedes-Benz Marco Polo W369 2004 - 2013
Mercedes-Benz Marco Polo W447 2014 - present
Mercedes-Benz part number: A63963102087C45
What is this switch surround used for?
This genuine Mercedes-Benz replacement part replaces the damaged surround around the two rear bench seat adjustment switches. The existing switches are transferred to the new surround.
Which vehicles and upholstery types is it intended for?
The product is listed for the Mercedes-Benz Marco Polo W639 and W447 with leather or fabric rear bench seat upholstery. The technical data contains the different model designation W369. Before choosing, compare part number A63963102087C45 with the replacement part specified for your vehicle.
Why can the switches protrude from the rear bench seat?
Broken retaining tabs on the surround can allow the switches to project further out of the bench seat than intended. The tabs can be damaged if someone sits too far forward on the front edge of the rear bench seat.
What is the switch surround made from?
The switch surround is made from ABS plastic.
How is the switch surround replaced?
Pull the surround and switches forwards out of the bench seat and disconnect the two electrical connectors. Press down the two retaining tabs on each switch and remove the switches forwards from the surround. Insert both switches into the new surround in their original orientation. Each switch is held by two retaining tabs. Reconnect the electrical connectors and press the surround with the switches back into the rear bench seat.
What is the Mercedes-Benz part number?
The Mercedes-Benz part number is A63963102087C45.
The order creation for optional installation service is done manually, in this case please do not order online.
| Brand | Mercedes-Benz |
| Item No. | 36066 |
| Content | 1 each |
| Condition | New |
| Weight | 20 g |
| Customs tariff number | 85365080 |
| Manufacturer | Mercedes-Benz AG Mercedesstraße 120 70372 Stuttgart Germany dialog@mercedes-benz.com |
