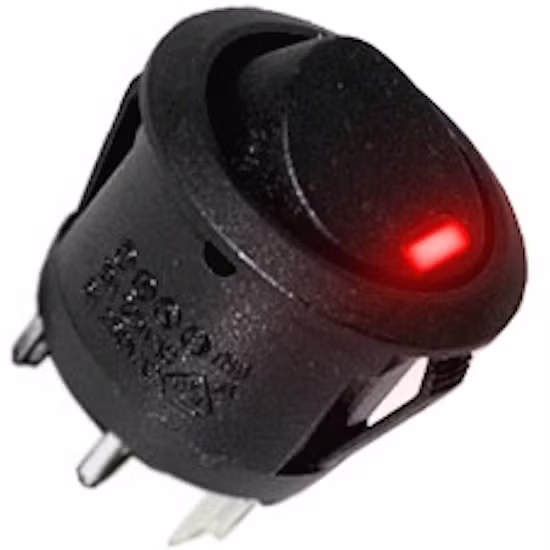

Round rocker switch ON | OFF with red 12 volt control LED lighting, switching current 20A
- Fingertip control: 12V loads up to 20A; inductive loads up to 4A.
- Status at a glance: Red indicator LED lights when switched on.
- Quick to fit: Snap-in design clips into the panel cutout.
- Space-saving fit: Round switch fits a 20.2 mm panel cutout.
Item no. 7761
This round ON/OFF switch for 12 V DC lets you turn connected devices on and off using the rocker. The integrated red 12-volt indicator LED provides a visual indication directly at the switch.
Match the switching current to your load
The maximum switching current is 20 A at 12 V DC. For inductive loads, the limit is 4 A. When selecting the switch, check both the current drawn by the connected device and its load type.
Plan your panel space before fitting
The snap-in design mounts in a 20.2 mm panel cutout. The outside diameter is 23.5 mm and the mounting depth is 24.3 mm. Before installation, also check that there is enough room behind the switch for the wiring connections.
Match your connectors to the terminal dimensions
The silver-plated push-on terminals measure 4.8 x 0.8 mm. Check these dimensions against your intended mating connectors. The product information does not include a pinout or specify how the indicator LED operates in relation to the switch position.
Check the intended installation in your vehicle
If you plan to fit the switch in a Mercedes-Benz Marco Polo W447 or Viano Marco Polo W639, compare the mounting dimensions and electrical limits with the intended installation space and circuit. A vehicle-specific fit is not specified. The supplied quantity is one snap-in ON/OFF switch with a red indicator LED.
Technical data
LED colour: red
LED voltage range: 12 V DC
Maximum operating voltage: 12 V DC
Maximum switching current: 20 A/12 V DC
Maximum switching current with an inductive load: 4 A
Maximum ambient temperature: 85°C
Insulation resistance (500 V DC): >100 MOhm
Body and rocker: Nylon 6.6/UL94V2
Connections: silver-plated
Push-on terminals: 4.8x0.8 mm
Panel cutout: 20.2 mm
Mounting depth: 24.3 mm
Outside diameter: 23.5 mm
Quantity supplied: 1 piece
What voltage and switching function is this rocker switch designed for?
The switch provides ON/OFF operation for 12 V DC circuits. Its maximum operating voltage is 12 V DC. The integrated red indicator LED is also designed for 12 V DC.
What current can the switch handle?
The maximum switching current is 20 A at 12 V DC. For inductive loads, the maximum is 4 A. Before connecting a device, check both its current draw and its load type.
What mounting dimensions do you need to allow for?
The snap-in mounting requires a 20.2 mm panel cutout. The outside diameter is 23.5 mm and the mounting depth is 24.3 mm. Allow additional space behind the switch for the wiring connections.
What terminals does the switch have?
The switch has silver-plated push-on terminals measuring 4.8 x 0.8 mm. The product information does not include a pinout. It also does not establish which switch position causes the indicator LED to light up.
What should you check before fitting it in a Marco Polo W447 or Viano Marco Polo W639?
A vehicle-specific fit for the Mercedes-Benz Marco Polo W447 or Viano Marco Polo W639 is not specified. Check the available installation space, panel cutout, terminal dimensions, operating voltage, current draw and load type of the intended circuit.
What is included?
The supplied quantity is one snap-in ON/OFF rocker switch with a red 12 V DC indicator LED.
The order creation for optional installation service is done manually, in this case please do not order online.
| Brand | Ampire |
| Item No. | 7761 |
| Content | 1 piece |
| Condition | New |
| Weight | 10 g |
| Customs tariff number | 85365080 |
| Manufacturer | Ampire Electronics GmbH & Co.KG Langwadener Straße 60 41516 Grevenbroich Germany support@ampire.de |
