Can Bus alarm system for your Mercedes-Benz V-Class, Marco Polo, Horizon, Activity (W447)
Item no. 18102
- One key is enough: Arm and disarm with your original remote.
- Bumps don't go unnoticed: Two-stage shock sensor triggers a warning or alarm.
- Alarm stays armed: Forcing door or boot locks won't disarm it.
- Warmth without false alarms: Your parking heater won't trigger the alarm.
The Ampire CAN bus alarm system monitors the doors, bonnet and boot, ignition and impacts on your Mercedes-Benz V-Class, Marco Polo, Horizon or Activity from the W447 series. You operate it with your existing vehicle key, so there is no additional remote to carry.
Arm and disarm the system with your original key
During normal operation, the system is armed and disarmed exclusively using the factory original remote control or comfort key. Forcing the door or boot lock does not disarm the alarm. Emergency disarming and a service mode are available when the remote control cannot be used.
The alarm receives relevant information through the comfort electronics CAN data bus. It can both read data and write commands to the bus. This allows it to operate the indicators and convenience closing function where these are supported by the vehicle.
Six separate zones help identify what triggered the alarm
Six separate alarm zones distinguish between the monitored areas and signals. Two of these zones support optional additional components.
- Alarm zone 1: Bonnet or boot opening, detected via CAN.
- Alarm zone 2: Strong impacts, detected by the integrated shock sensor with adjustable sensitivity.
- Alarm zone 3: Door opening, detected via CAN.
- Alarm zone 4: Triggering by an optional analogue sensor.
- Alarm zone 5: Ignition switched on, detected via CAN.
- Alarm zone 6: Triggering by an optional analogue alarm contact.
The integrated two-stage shock sensor distinguishes between light and strong impacts. Light impacts produce a warning, while strong impacts trigger the alarm. The sensitivity can be adjusted.
If a fault occurs, the anti-false-alarm function automatically disables individual alarm zones. Warnings caused by light impacts or an optional sensor are excluded from this zone shutdown. The long-term memory records the two zones that most recently triggered an alarm, helping with subsequent diagnosis.
Remote boot release and any fitted parking heater or remote engine-start function do not trigger a false alarm. The system therefore accommodates these intended vehicle functions.
Configure the siren tone and duration

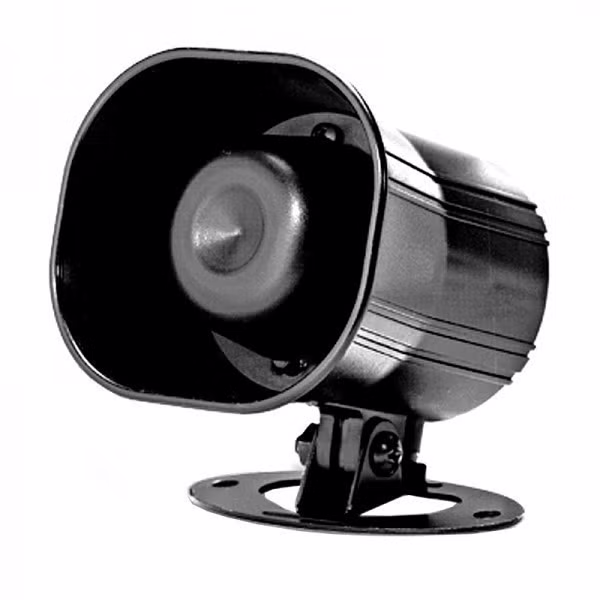

The compact 514LN siren with a ferrite magnet produces a sound pressure level of 121 dB at a distance of 1 metre. It offers six different siren tones played in sequence, changing every five seconds. A single continuous tone can be selected instead.
The factory alarm duration is 30 seconds and can technically be extended to 60 seconds. Soft Chirp allows adjustment of the volume of the confirmation chirps when arming and disarming. Please also observe the configuration restrictions below.
- Siren dimensions: 84 x 83 x 72 mm.
- Siren current consumption during an alarm: 1200 mA.
- Magnet material: ferrite.
Interrupt the starter circuit and control optional accessories
The included FailSafe immobiliser relay enables starter circuit interruption and is rated for up to 15 A. Additional analogue outputs provide control connections for vehicle functions and optional accessories.
- Alarm output, rated for up to 200 mA: for controlling the vehicle horn or an optional GPS tracking system.
- Indicator/parking light output, rated for up to 200 mA: for use when control via CAN is not possible.
- AUX channel, rated for up to 200 mA: for accessory control by pressing the remote control's lock button twice.
- Armed-state output, rated for up to 500 mA: for controlling optional accessories.
An additional sensor, an additional alarm contact and a GPS tracking system are optional additions. The corresponding connections do not replace these components.
Install with a vehicle-specific wiring diagram and adjust the settings
A vehicle-specific wiring diagram is included for self-installation. Installation in 1sternehotel's own workshop is an optional alternative. Work on vehicle electrics and starter circuit interruption requires appropriate technical knowledge.

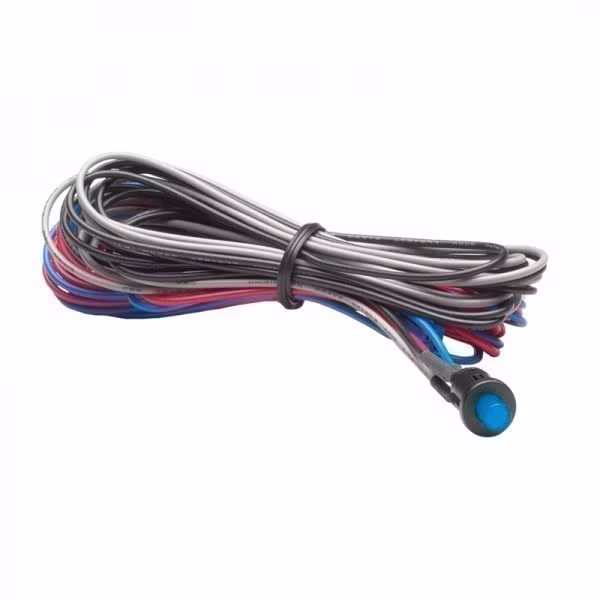

The flashing LED with integrated service button supports diagnostics, operation and programming. You can change the main operating settings directly using this button.
For faster and more extensive programming, the optional Bitwriter connects to the serial ESP interface. It also allows a code to be set and manual changes to the settings to be locked out. The optional Bitwriter cable can be incorporated during installation.
Check acoustic settings before putting the system into service
Arming and disarming confirmation chirps must not be used within the EU. A continuous siren tone is specified for an intrusion alarm. Have the permitted alarm duration and other settings checked before putting the system into service. The technical options for changing tones or a 60-second alarm do not mean that these settings are permitted at the intended place of use.
Technical data
- Operating voltage 12 volts DC
- Standby current 14mA max.
- Alarm control unit dimensions 9.0 cm x 5.7cm x 3.2cm
E-TYPE APPROVAL
- e11*74/61*95/56*2111*00
- E11 97R 2311
- E11 10R 024543
Which vehicles is the Ampire CAN bus alarm system intended for?
The system is intended for Mercedes-Benz V-Class, Marco Polo, Horizon and Activity vehicles from the W447 series. Compatibility with other vehicle series is not established by the supplied information. CAN control of the indicators and convenience closing is only possible where supported by the vehicle.
How is the alarm armed and disarmed?
During normal operation, use the factory original remote control or comfort key. Forcing the door or boot lock does not disarm the alarm. Emergency disarming and service mode are also possible without the remote control.
What do the six alarm zones monitor?
The zones monitor the bonnet/boot, strong impacts, doors, an optional analogue sensor, ignition and an optional analogue alarm contact. The integrated two-stage shock sensor gives a warning for light impacts and triggers the alarm for strong impacts. Its sensitivity is adjustable.
How does the system handle false alarms and identify previous triggers?
If a fault occurs, the anti-false-alarm function automatically disables individual zones. Warnings caused by light impacts or an optional sensor are excluded from this shutdown. The long-term memory records the two zones that most recently triggered an alarm. Remote boot release and any fitted parking heater or remote engine-start function do not trigger a false alarm.
Which siren is included and what settings does it offer?
The 514LN siren produces a sound pressure level of 121 dB at a distance of 1 metre. It offers six tones played in sequence, changing every five seconds, or one continuous tone. The factory alarm duration is 30 seconds and can technically be extended to 60 seconds. Soft Chirp adjusts the volume of confirmation chirps. Permitted configuration settings must be considered separately.
What must be considered when configuring acoustic signals within the EU?
Confirmation chirps when arming and disarming must not be used within the EU. A continuous tone is specified for an intrusion alarm. Have the permitted alarm duration and other settings checked before putting the system into service. Not every technically possible tone sequence or alarm duration is permitted at the intended place of use.
What is included in the system and which components are optional?

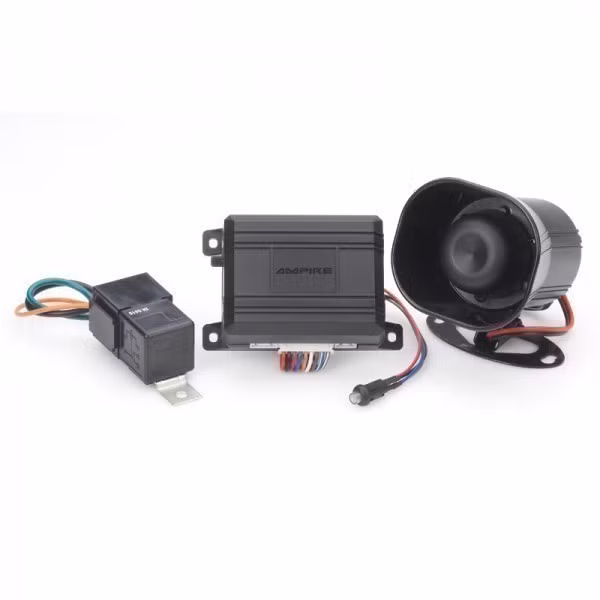

The described system includes the alarm control unit with integrated shock sensor, the flashing LED with service button, the 514LN siren, the FailSafe immobiliser relay rated for up to 15 A and the vehicle-specific wiring diagram. An additional sensor, an additional alarm contact, a GPS tracking system, the Bitwriter and its cable are optional additions.
How is the system installed and programmed?
The vehicle-specific wiring diagram supports self-installation by someone with appropriate technical knowledge. Installation at the 1sternehotel workshop is an optional alternative. The main settings are changed using the service button integrated into the flashing LED. The optional Bitwriter connects to the serial ESP interface and enables more extensive settings, a code and a lock against manual changes.
Which electrical connections and operating values are important?
The operating voltage is 12 V DC and the maximum standby current is 14 mA. The analogue alarm output, indicator/parking light output and AUX channel are each rated for up to 200 mA; the armed-state output is rated for up to 500 mA. The AUX channel is activated by pressing the lock button twice. The included immobiliser relay is rated for up to 15 A and is used for starter circuit interruption.
optional *
plus 299€.We need your vehicle for 3 hours for the installation.
The order creation for optional installation service is done manually, in this case please do not order online.
| Brand | Ampire |
| Item No. | 18102 |
| Content | 1 piece |
| Condition | New |
| Weight | 800 g |
| Customs tariff number | 85311095 |
| Manufacturer | Ampire Electronics GmbH & Co.KG Langwadener Straße 60 41516 Grevenbroich Germany support@ampire.de |
