Victron Blue Smart battery charger with Bluetooth 12/15 +DC cable for optimised charging of all battery types
- Ready for your next trip: 12 V, 15 A charging, including LiFePO4.
- Charging at a glance: Check voltage and current through VictronConnect via Bluetooth.
- Longer battery life: Adaptive charging and storage mode help reduce ageing.
- Connect your way: Crocodile clips and M8 eyelets are included.
Item no. 36568
The Victron Blue Smart IP65 12/15 charges compatible 12 V batteries at up to 15 A through a single charging output. You can check voltage and charging current on your smartphone, keeping track of charging before your next trip or during longer periods off the road.

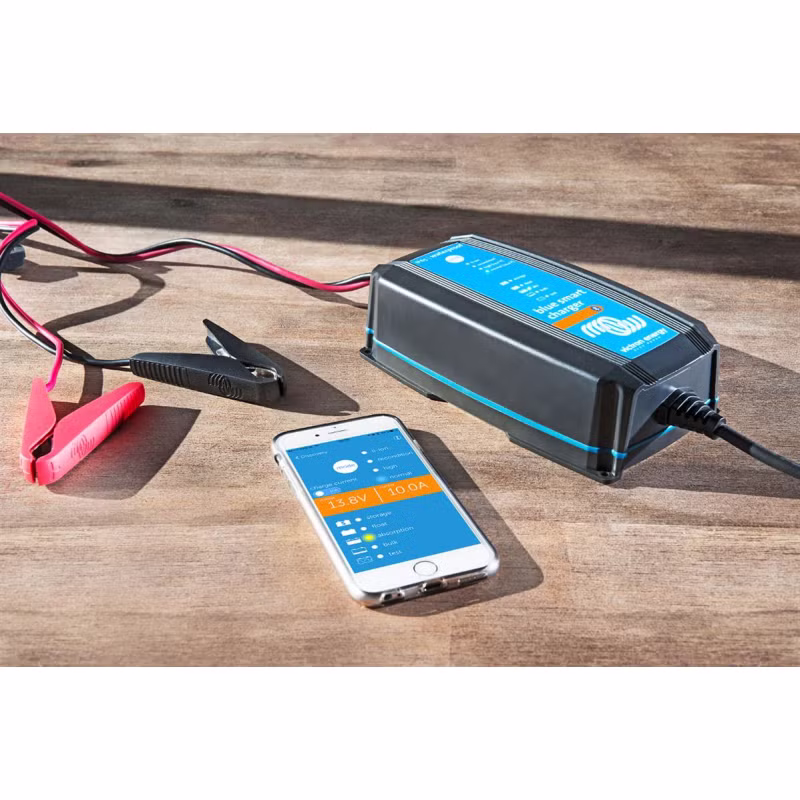

Check charging status and adjust settings from your phone
With Bluetooth and the VictronConnect app, you can view the status of both the charger and the battery. Voltage and current are displayed directly. Within Bluetooth range, you can also change settings and install available firmware updates without having to access the charger itself.
Match the charging profile to your battery
The charger is suitable for compatible 12 V lead-acid and 12 V LiFePO4 batteries. This does not mean it supports every battery or every lithium-ion chemistry. The charging profile, voltage and current must meet the battery manufacturer's requirements.
The adaptive, multi-stage charging algorithm adjusts the charging process to the way the battery is used. It takes the battery through testing, bulk charging and absorption, followed by float and storage charging. Reconditioning is only appropriate for lead-acid batteries that permit it. LiFePO4 batteries use a separate charging sequence with constant-current, constant-voltage and float stages.
Use a lower storage voltage during longer breaks
If the battery has not been discharged for 24 hours, the charger activates storage mode. For 12 V lead-acid batteries, the voltage is reduced to 13.2 V to limit gassing and positive plate corrosion. A weekly refresh charge helps counter electrolyte stratification and sulphation, making this mode useful when the vehicle is not being used for a while.
Limit energy losses and reduce charging current when needed
Efficiency of up to 94% limits energy losses and waste heat. Once the battery is fully charged, power consumption falls below 0.5 W.
The LOW setting allows you to reduce the charging current when the battery requires a lower current. As temperatures rise, the charger reduces its output current to protect against overheating.
A protected housing with two practical connection options
The IP65 housing protects against dust and splashes and is designed to resist chemicals. This protection rating does not permit the charger to be submerged. The battery and electrical connections also need protection appropriate to their location.

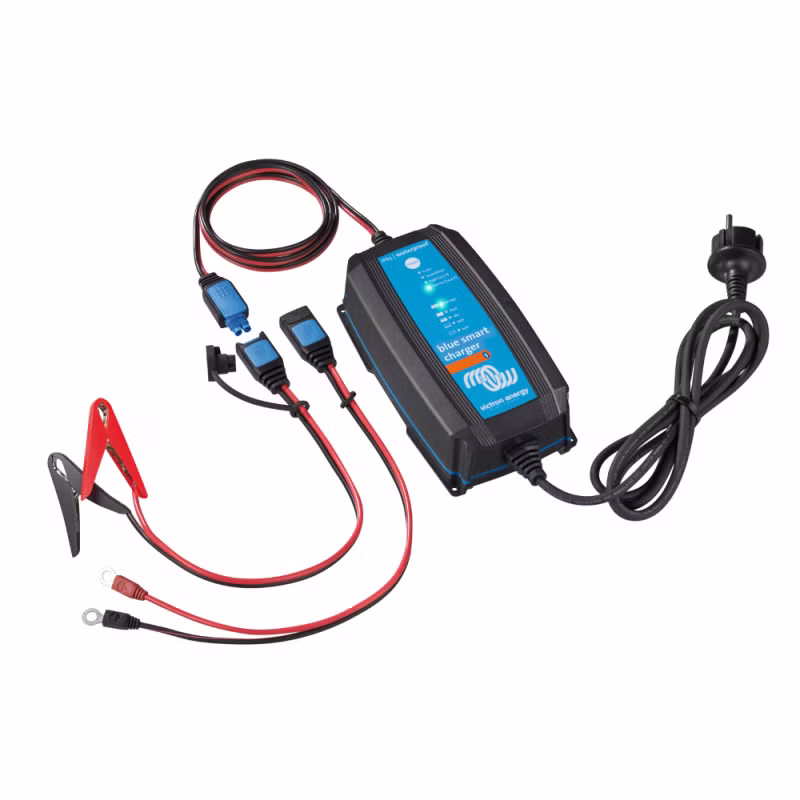

The included DC leads with crocodile clips and M8 eyelets offer two ways to connect: clips for a temporary connection or eyelets for a bolted connection. The charger has one charging output.
Check your battery specifications before using it in a Marco Polo
Suitability for your Mercedes-Benz Marco Polo W447 or Viano Marco Polo W639 depends on the installed battery and the intended connection, not simply on the vehicle model. Before connecting the charger, check:
- Battery chemistry, 12 V nominal voltage and permitted charging voltage.
- Permitted charging current and the corresponding charging profile.
- The vehicle manufacturer's instructions for charging points and connection procedures.
- Availability of a suitable mains connection to power the charger.
The Blue Smart IP65 is a mains-powered battery charger, not a DC-DC charger for charging while driving.
Technical data
| Shipping weight: | 1.23 kg |
| Product weight: | 0.93 kg |
| Shipping dimensions ( length × width × height ): | 8.00 × 30.00 × 22.00 cm |
Which batteries can the Victron Blue Smart IP65 12/15 charge?
It is suitable for compatible 12 V lead-acid and 12 V LiFePO4 batteries. The charging profile, voltage and current must meet the battery manufacturer's requirements. It is not designed for 24 V batteries or all lithium-ion battery chemistries.
What charging current and how many charging outputs does it provide?
The 12/15 model provides one charging output with a charging current of up to 15 A. The LOW setting allows the current to be reduced. The battery's charging requirements must still be observed when using a reduced current.
What can you control through Bluetooth and VictronConnect?
Within Bluetooth range, you can view voltage, current and the status of the battery and charger. The VictronConnect app also lets you change settings and install available firmware updates.
How is the battery connected, and which leads are included?
DC leads with crocodile clips and M8 eyelets are included. These allow either a clipped or a bolted connection. Follow the connection instructions for both the battery and the vehicle.
What does storage mode do during longer periods of inactivity?
Storage mode activates after 24 hours without discharge. For 12 V lead-acid batteries, the voltage drops to 13.2 V to limit gassing and positive plate corrosion. A weekly refresh charge helps counter electrolyte stratification and sulphation.
How efficient is the charger, and how does it respond to heat?
Efficiency is up to 94%. Power consumption falls below 0.5 W once the battery is fully charged. As temperatures rise, output current is reduced to protect against overheating.
What protection does the IP65 housing provide?
The housing protects against dust and splashes and is designed to resist chemicals. IP65 does not mean the charger can be submerged. The battery and electrical connections need protection appropriate to their location.
What should you check before using it in a Marco Polo W447 or W639?
The installed battery's specifications and the vehicle manufacturer's connection instructions determine suitability. Check battery voltage, chemistry, permitted charging current and suitable charging points. This mains-powered charger requires an appropriate mains connection and does not replace a DC-DC charger.
The order creation for optional installation service is done manually, in this case please do not order online.
| Brand | Victron Energy |
| Item No. | 36568 |
| Content | 1 piece |
| Condition | New |
| Weight | 1230 g |
| Customs tariff number | 85044095 |
| Manufacturer | Victron Energy B.V. De Paal 35 1351 JG Almere Netherlands sales@victronenergy.com |
