230V / 600-1200 Watt continuous current, invisibly installed in the Mercedes Marco Polo Horizon & Activity with original shore power connection
- 230 V off-grid: 600 W continuous output through the existing socket.
- Save battery power: The inverter switches off automatically on shore power.
- Keep space for luggage: The inverter stays hidden behind the side panel.
- Use your laptop as usual: Pure sine wave for mains-quality power.
Item no. 36534
This concealed inverter lets you use your Mercedes-Benz Marco Polo's existing 230 V socket without a shore power connection. It provides 600 W continuous output and 1,200 W peak output with a pure sine wave.
The installation is designed for the Mercedes-Benz Marco Polo Horizon and Activity (W447) with the original shore power connection. It can only be fitted to vehicles without a Jehnert sound system or subwoofer, as the inverter occupies the space used by the subwoofer.
Use the existing socket, with or without shore power
The integrated mains priority circuit automatically connects the existing socket to the appropriate power source. No additional socket is required. When shore power is connected, it is passed through to the socket. The inverter switches off completely and stops drawing power from the leisure battery. Once shore power is disconnected, the inverter automatically resumes the 230 V supply from the leisure battery.
Hidden installation with controls beside the socket

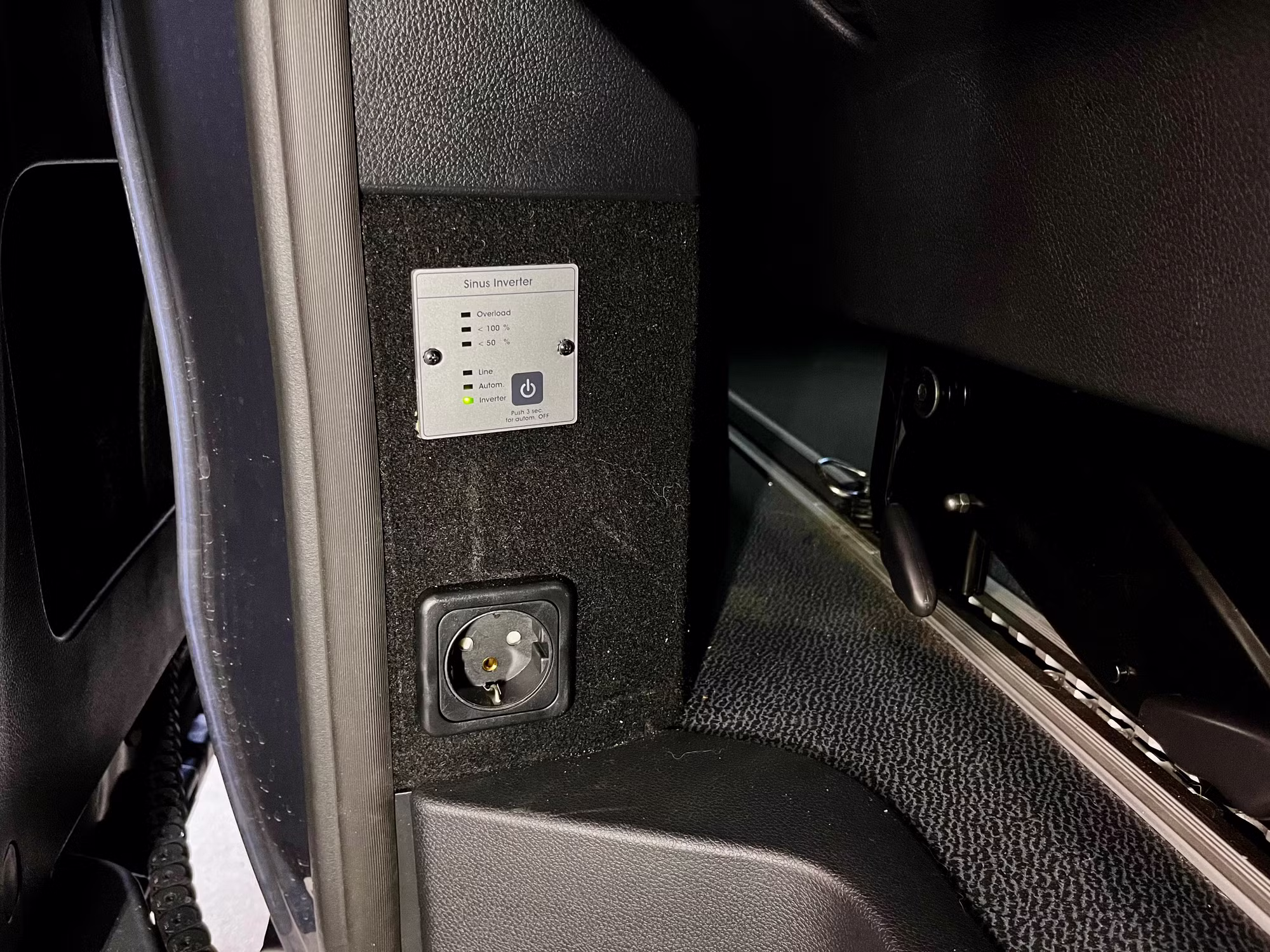

The inverter and its wiring are installed behind the side trim, keeping the equipment out of sight inside the vehicle. Only the external control panel remains visible. It is fitted above the original 230 V socket in the side trim.
The remote control lets you switch the inverter fully on and off. Six LEDs indicate its operating status and the current output range.
Match power consumption to the way you travel
You can select continuous operation or automatic standby with automatic detection of switched-on loads. The energy-saving control with automatic shutdown helps adapt battery consumption to actual demand. Fan speed is continuously adjusted according to load and temperature.
The 600 W continuous rating is the key figure when choosing appliances. The 1,200 W peak rating is not continuously available. Check both the running power and any start-up demand of your appliances. Operating time depends on usable battery capacity, state of charge and the connected load.
Fused connection and built-in protective shutdowns
The inverter is connected to the leisure battery with fuse protection and integrated with the vehicle's original residual-current device. Built-in shutdown functions respond to battery overvoltage and undervoltage, overload and overheating. The mains priority circuit has a 10 A circuit breaker for overload protection.
Plan battery storage, charging and appliances together
Depending on your usage, a solar system, a lithium battery and a battery-to-battery charger may be useful parts of your electrical setup. These components concern energy storage and charging; they do not increase the inverter's continuous output.
The linked modified Nespresso camper coffee machine is specified at approximately 720 W maximum power consumption. This exceeds the inverter's continuous rating. The suitability of this combination must be checked against the machine's actual operating profile. The 1,200 W peak rating alone does not establish compatibility.
Before planning the installation, have the 1sternehotel workshop check your vehicle equipment, battery setup and the power requirements of your intended appliances.
Further features at a glance
- Mains-quality output voltage, pure sine wave
- Operation of mains-powered appliances within the specified output limits, e.g. radios, laptops, PCs, TVs, satellite equipment, TFT displays, refrigerators and vacuum cleaners
- Integrated mains priority circuit protects battery reserves when shore power is available
- Selectable energy-saving mode: continuous operation or automatic standby with automatic detection of switched-on loads
- Automatic shutdown in the event of battery overvoltage or undervoltage, overload, overheating, etc.
- Load- and temperature-controlled comfort cooling fan with continuously variable speed
- Integrated mains priority circuit with overload protection via a 10 A circuit breaker
- Made in Germany
The inverter can only be installed in a Marco Polo Horizon & Activity without a Jehnert sound system or subwoofer. In vehicles with a Jehnert sound system, the subwoofer occupies the inverter's installation space.
Pure sine wave inverter for a stable 230 V supply, "Made in Germany"
Which vehicles is this installation designed for?
It is designed for the Mercedes-Benz Marco Polo Horizon and Activity (W447) with the original shore power connection. Installation is only possible without a Jehnert sound system or subwoofer, as the inverter needs the space occupied by the subwoofer.
What voltage and output does the inverter provide?
It provides 230 V with a pure sine wave, 600 W continuous output and 1,200 W peak output. Peak output is not continuously available. A specific duration for maximum loading is not stated.
How does switching between shore power and battery operation work?
When shore power is connected, the mains priority circuit supplies the existing socket from the external connection. The inverter switches off completely and stops drawing power from the battery. Once shore power is disconnected, it automatically resumes the supply from the leisure battery. No additional socket is needed.
Where are the inverter and control panel installed?
The inverter and cables are concealed behind the side trim. The external control panel sits above the original 230 V socket and lets you switch the inverter fully on and off. Six LEDs show operating status and output range.
How is the inverter connected and protected?
It has a fused connection to the leisure battery and is integrated with the original residual-current device. Built-in shutdowns respond to battery overvoltage and undervoltage, overload and overheating. The mains priority circuit has a 10 A circuit breaker. Fan speed is continuously controlled according to load and temperature.
Which energy-saving modes can you select?
You can select continuous operation or automatic standby with automatic detection of switched-on loads. The energy-saving control with automatic shutdown helps adapt battery consumption to actual demand.
Which 230 V appliances can be connected?
The individual appliance specifications are decisive. Total running power must remain within 600 W, and any start-up demand must also be considered. Compatibility must be checked against the actual specifications, whether you intend to connect a laptop, TV, refrigerator or another appliance.
What should you check before using the modified Nespresso camper coffee machine?
The linked machine is specified at approximately 720 W maximum power consumption. This exceeds the inverter's 600 W continuous output. The combination therefore requires a technical check against the machine's actual operating profile. The 1,200 W peak rating alone does not establish suitability.
How long can the system supply 230 V without shore power?
Runtime depends on usable battery capacity, state of charge and the power consumption of connected appliances. No general runtime is specified. Continuous output describes the permissible load, not unlimited operating time.
Which additions may be useful for the electrical setup?
Depending on usage, a solar system, lithium battery and battery-to-battery charger can be considered. They concern energy storage and charging but do not increase the inverter's 600 W continuous output. The choice should match the vehicle equipment and your consumption profile.
| Brand | 1sternehotel |
| Item No. | 36534 |
| Content | 1 Installation |
| Condition | New |
| Weight | 4317 g |
| Customs tariff number | 85444290 |
| Manufacturer | Axel Seidel Peter-Seifert Str. 10 36129 Gersfeld Germany hello@1sternehotel.de |
