Alarm system for Mercedes-Benz Marco Polo (W447) from 2014 including installation
Item no. 35867
- One key is enough: Arm and disarm with your original Mercedes-Benz key.
- Early warning: Two-stage shock sensor detects impacts and attempted break-ins.
- Heating without false alarms: Your parking heater runs while protection stays active.
- Status at a glance: Blue LED shows when the alarm is armed.
The Ampire alarm system adds discreetly integrated alarm protection to your Mercedes-Benz Marco Polo W447 built from 2014 onwards. You arm and disarm it with your existing vehicle key, so there is no additional remote control to carry.
Keep using your familiar factory key
The system is suitable for vehicles with or without a factory-fitted alarm. It receives alarm-related information through the comfort electronics CAN bus and can also send commands to the vehicle. This allows it to operate the indicators and convenience closing function. Forcing the door or boot lock does not disarm the alarm.
Discreet installation with a visible status indicator
The alarm components are concealed. A blue status LED remains visible in the centre speaker grille on the dashboard, showing you when the system is armed. Its position towards the front allows you to arrange cab insulation so that the LED remains visible from outside without shining towards you while you sleep in the pop-up roof.
Detect impacts and identify what triggered an alarm
An integrated two-stage shock sensor with pre-warning distinguishes between light and heavy impacts. Its sensitivity is adjustable. Six separate alarm zones cover events including the opening of the doors, bonnet or boot and the ignition being switched on. Analogue alarm zones are also provided for a tilt sensor and an optional alarm contact.
If a fault occurs, the anti-false-alarm function can automatically disable individual zones. Long-term memory records the two zones that most recently triggered an alarm, allowing you to check them later. Remote boot opening, an existing auxiliary heater or an existing remote engine-start function do not cause false alarms; the alarm package does not add these vehicle functions.
Audible alarm with connections for optional equipment
The compact siren produces a sound pressure level of 121 dB at 1 m. Its technical settings allow six alternating siren tones or one continuous tone. Audible confirmations, siren tone and alarm duration must be configured in accordance with applicable regulations. Not every available setting is permitted in every region.
A FailSafe immobiliser relay rated at 15 A is included. Analogue outputs allow connection to equipment such as the vehicle horn or an optional GPS tracking system, as well as control of optional accessories. GPS tracking requires a separate, optional system.
Installation included, with accessible service functions
Installation at the 1sternehotel workshop is included. The service button integrated into the flashing LED provides access to diagnostics, operation and programming. Emergency disarming and service mode are also possible without the remote control. The system operates on 12 V DC and draws a maximum of 14 mA in standby.
Technical specifications
FEATURES
- Arming/disarming only with the original factory remote controls or comfort key
- Forcing the door or boot lock does not disarm the system
- Flashing LED with integrated service button enables diagnostics, operation and programming
- Integrated two-stage shock sensor with pre-warning alerts you to break-in attempts or parking impacts
- No false alarm when the boot is opened remotely or an auxiliary heater or remote engine start is activated
- Emergency disarming and service mode are available safely at any time, even without the remote control
ALARM ZONES
The alarm system protects your Mercedes-Benz Marco Polo through 6 separate alarm zones. The anti-false-alarm function automatically disables individual zones if a fault occurs. The long-term memory allows you to read out the two zones that most recently triggered an alarm at any time.
- Alarm zone 1: Triggered when the bonnet/boot is opened (via CAN)
- Alarm zone 2: Triggered by heavy impacts detected by the integrated shock sensor (adjustable sensitivity)
- Alarm zone 3: Triggered when the doors are opened (via CAN)
- Alarm zone 4: Triggered by a tilt sensor (analogue)
- Alarm zone 5: Triggered when the ignition is switched on (via CAN)
- Alarm zone 6: Triggered by an optional alarm contact (analogue)
Pre-warnings caused by light impacts (via the integrated shock sensor) or by the optional sensor are not disabled as an alarm zone.

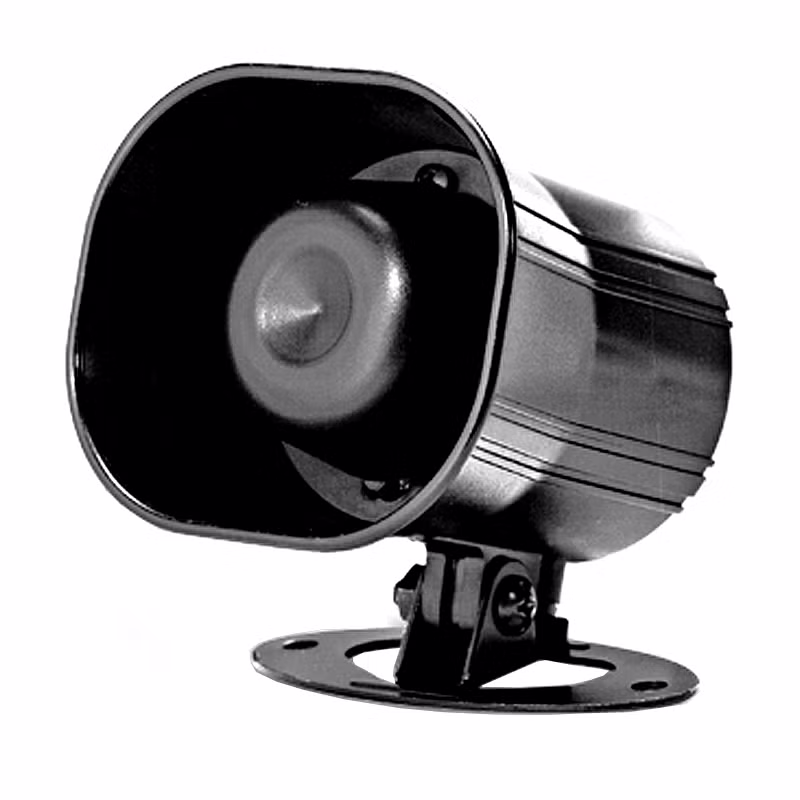

SIREN
This ultra-compact siren with a ferrite magnet produces a sound pressure level of 121 dB (measured at a distance of 1 metre). The siren has 6 different tones, played in sequence and changing every 5 seconds. The volume of the siren chirps when arming and disarming can also be adjusted using the "Soft Chirp" function. The factory-set alarm duration is 30 seconds and can be extended to 60 seconds by the user.
- Sound pressure level (SPL): 121 dB (at a distance of 1 metre)
- Magnet material: Ferrite
- Current consumption during an alarm: 1200 mA
- Siren tones: Selectable, 6 different tones or 1 continuous tone
- Siren dimensions: 84 x 83 x 72 mm
OUTPUTS

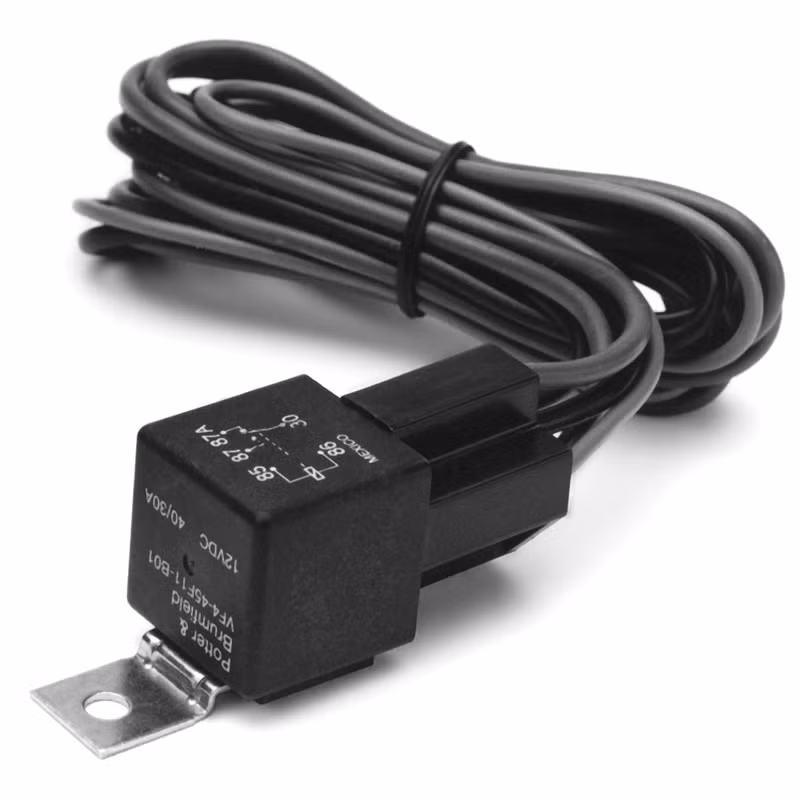

- "FailSafe" immobiliser relay included (rated at 15 A)
- Analogue alarm output (rated at 200 mA), for the vehicle horn or an optional GPS tracking system
- Analogue indicator/parking light output (rated at 200 mA), if control via CAN is not possible
- Analogue AUX channel for controlling optional accessories (rated at 200 mA), activated by pressing the remote control lock button twice
- Analogue armed output (rated at 500 mA), for controlling optional accessories
LEGAL NOTICE
We recommend activating the siren tones when arming/disarming (menu item 1-2). This provides you, as the alarm system user, with audible information about the system status. Quiet siren tones (siren chirps) indicate whether the system has armed correctly. An audible error message (siren chirps) would immediately indicate a door that is still open, a tampered alarm sensor, etc. However, these siren chirps are not permitted within the EU. EU directives only allow a continuous siren tone lasting <30 seconds following a break-in.
- Operating voltage: 12 volts DC
- Standby current: 14 mA max.
- Alarm control unit dimensions: 9.0 cm x 5.7 cm x 3.2 cm
E APPROVAL
- e11*74/61*95/56*2111*00
- E11 97R 2311
- E11 10R 024543
Which vehicles is the Ampire alarm system designed for?
This package is for the Mercedes-Benz Marco Polo W447 built from 2014 onwards. The system is suitable for vehicles with or without a factory-fitted alarm.
What is included in the package?
The package includes the alarm system and installation at the 1sternehotel workshop. The specified equipment includes the alarm control unit, siren, integrated shock sensor, blue LED with service button and a FailSafe immobiliser relay rated at 15 A. GPS tracking requires an optional system and is not a built-in function.
How is the alarm armed and disarmed?
You operate the system using the original factory remote control or comfort key. No additional remote control is needed. Forcing the door or boot lock does not disarm the system. Emergency disarming and service mode are also possible without the remote control.
Which events can trigger an alarm?
The six alarm zones cover the bonnet or boot being opened, heavy impacts, the doors being opened, an analogue tilt sensor signal, the ignition being switched on and an optional analogue alarm contact. The integrated shock sensor provides a pre-warning for light impacts, and its sensitivity is adjustable.
How does the system handle false alarms?
The anti-false-alarm function automatically disables individual zones if a fault occurs. Long-term memory records the two zones that most recently triggered an alarm. Remote boot opening, an existing auxiliary heater or an existing remote engine-start function do not cause false alarms. The alarm package does not add these vehicle functions.
Where is the status LED fitted, and can it be used with cab insulation?
The blue LED is positioned towards the front of the centre speaker grille on the dashboard. Cab insulation can be arranged so that the LED remains visible from outside without shining towards you while you sleep in the pop-up roof. The integrated service button provides access to diagnostics, operation and programming.
How loud is the siren, and what restrictions apply?
The siren produces 121 dB, measured at a distance of 1 m. Its settings allow six alternating tones or one continuous tone. Alarm duration is preset to 30 seconds and can be extended to 60 seconds. These settings are not automatically legally permissible. Audible arming and disarming confirmations are not permitted within the EU; siren tone and alarm duration must comply with applicable local regulations.
What optional equipment can be connected?
Analogue outputs are provided for the vehicle horn or an optional GPS tracking system, the indicators or parking lights, and optional accessories. The AUX channel is activated by pressing the lock button twice. An analogue armed output and an alarm zone for an optional alarm contact are also provided.
What operating voltage and standby current does the system require?
The system operates on 12 V DC and has a maximum standby current of 14 mA. The siren is specified as drawing 1200 mA during an alarm. These figures alone do not establish how long the vehicle battery will last while parked.
| Brand | Ampire |
| Item No. | 35867 |
| Content | 1 Installation |
| Condition | New |
| Weight | 850 g |
| Customs tariff number | 85311095 |
| Manufacturer | Ampire Electronics GmbH & Co.KG Langwadener Straße 60 41516 Grevenbroich Germany support@ampire.de |
